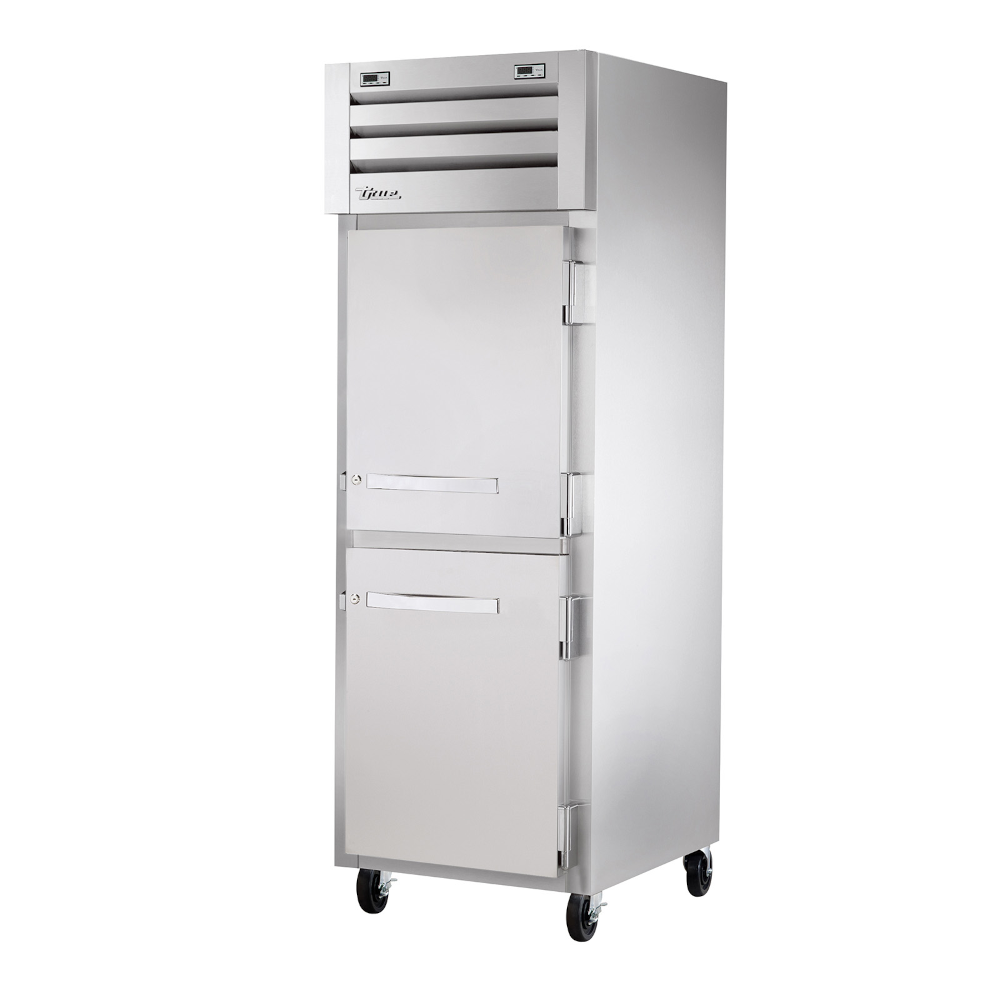

True STR1DT-2HS-HC Specification Series Half Door Dual Temperature Reach In Combination Refrigerator / Freezer

Part of the True Specification Series, the True STR1DT-2HS-HC reach-in refrigerator/freezer is designed using the highest quality materials and components for colder product temperatures, lower utility costs, and exceptional food safety. The top-mounted factory engineered refrigeration system gives you more storage and prevents spill or food damage to the intake fan. Easily organize your interior with one of the optional interior shelving kits, see below for details.

The True STR1DT-2HS-HC has 2 stainless steel half doors with stay open and self-closing features. True STR dual temperature refrigerator/freezers are constructed with a stainless steel exterior and a stainless steel interior. The high capacity, factory balanced refrigeration system maintains 33°F to 38°F in the top refrigerator section and -10°F in the bottom freezer section.

Specifications:

• Model: STR1DT-2HS-HC
• Dimensions: 27-1/2" L x 33-3/4" D x 77-3/4" H
• Weight: 500 lbs.
• Electrical
• HP Refrigerator: 1/5
• HP Freezer: 1/3
• Voltage: 115/60/1
• Amps: 12
• 9' cord & 5-15P NEMA plug
• Made in USA
• Commercial Warranty: Three-year warranty on all parts and labor and an additional 2-year warranty on compressor (U.S.A only)

Standard Features:

Refrigeration System

• Two independent, self-contained refrigeration systems; CFC-free, environmentally friendly and factory balanced
• R134A refrigerator refrigerant & R404A freezer refrigerant
• High capacity, factory balanced refrigeration system that maintains 33°F to 38°F in the top refrigerator section and -10°F in the bottom freezer section
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
• Freezer features automatic defrost system time-initiated, temperature-terminated.
• Automatic evaporator fan motor delay during defrost cycle.

Cabinet Construction

• Exterior - stainless steel door, front, and sides
• Interior - stainless steel side walls, back, floor, door liner, and ceiling
• Insulation - entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP)
• 5" diameter plate castors - locks provided on front set

Door

• Lifetime guaranteed bolt style door lock standard
• Lifetime guaranteed heavy duty all metal working door handle
• Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four per door section
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning

Lighting

• LED interior lighting, safety shielded

Model Features

• Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer
• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Curb mounting ready
• NSF-7 compliant for open food product

Shelving Kit Options

• STR series kits installed at no charge
• Kit #1: Nine sets of #1 type tray slides and pilasters (field installed), bottom support of one 18" L x 26" D pan or two 14" L x 18" D pans
• Kit #2: One set half-section #2 steel rod tray slides and pilasters (field installed), rim support of one 18" L x 26" D pan
• Kit #3: Six sets of universal type tray slides and pilasters (field installeD), bottom support of one 18" L x 26" D pan, two 14" L x 18" D pans, or two 12" L x 20" D pans
• Kit #4: Three chrome shelves 25" L x 27-3/4" D. Optional wall mounted shelf support pilasters (field installed) with four shelf clips per shelf available; adjustable on 1/2" increment (must order at time of cabinet order)
• Additional kit option components available individually
