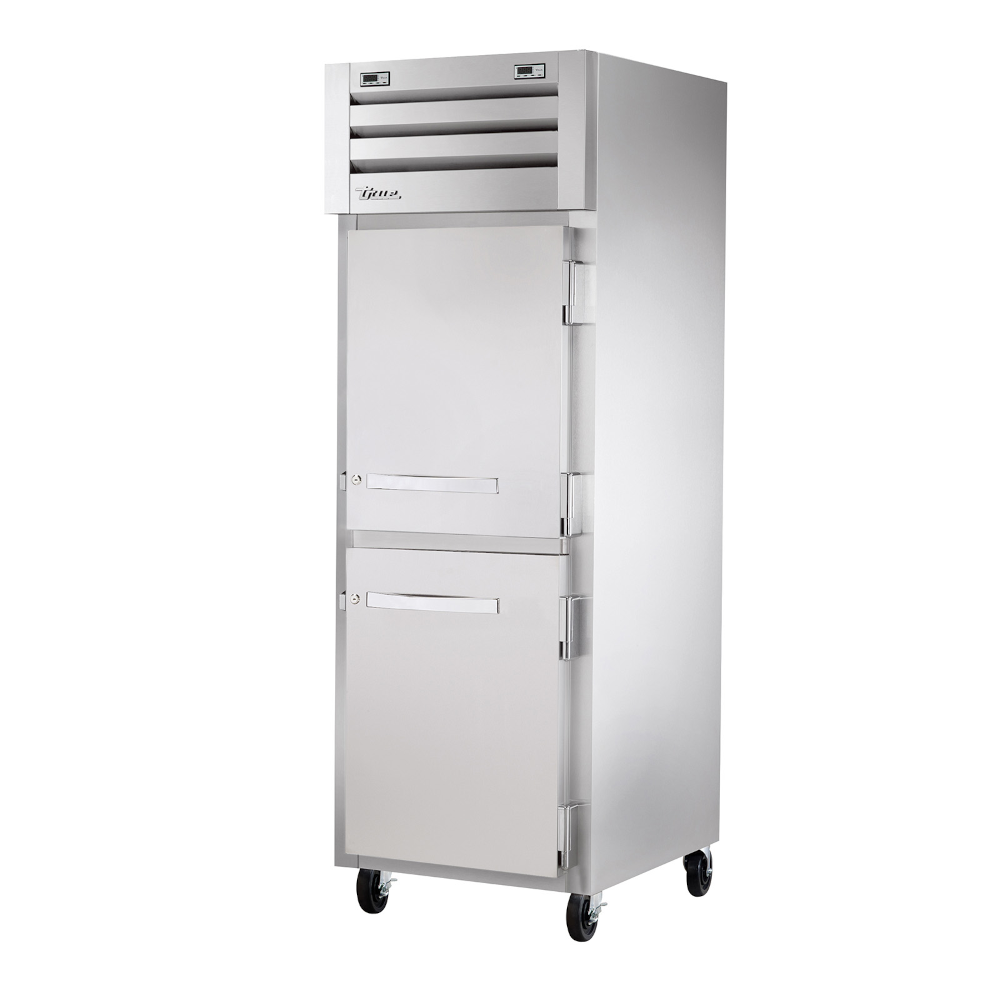

True STG1DT-2HS-HC Specification Series Half Door Dual Temperature Reach In Combination Refrigerator / Freezer

Part of the True Specification Series, the True STG1DT-2HS-HC reach-in refrigerator/freezer is designed using the highest quality materials and components for colder product temperatures, lower utility costs, and exceptional food safety. The top-mounted factory engineered refrigeration system gives you more storage and prevents spill or food damage to the intake fan. Easily organize your interior with 3 heavy duty, PVC-coated, wire shelves per section.

The True STG1DT-2HS-HC has 2 stainless steel half doors with stay open and self-closing features. True STA dual temperature refrigerator/freezers are constructed with a stainless steel doors and matching aluminum exterior sides. The high capacity, factory balanced refrigeration system maintains 33°F to 38°F in the top refrigerator section and -10°F in the bottom freezer section.

Specifications:

• Model: STG1DT-2HS-HC
• Dimensions: 27-1/2" L x 33-3/4" D x 77-3/4" H
• Electrical
• HP Refrigerator: 1/5
• HP Freezer: 1/3
• Voltage: 115/60/1
• Amps: 12
• 9' cord & 5-15P NEMA plug
• Made in USA
• Commercial Warranty: Three-year warranty on all parts and labor and an additional 2-year warranty on compressor (U.S.A only)

Standard Features:

Refrigeration System

• Two independent, self-contained refrigeration systems; CFC-free, environmentally friendly and factory balanced
• R290 refrigerant
• High capacity, factory balanced refrigeration system that maintains 33°F to 38°F in the top refrigerator section and -10°F in the bottom freezer section
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
• Freezer features automatic defrost system time-initiated, temperature-terminated.
• Automatic evaporator fan motor delay during defrost cycle.

Cabinet Construction

• Exterior - stainless steel door with matching aluminum sides
• Interior - aluminum side walls and back; stainless steel floor and ceiling
• Insulation - entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP)
• 5" diameter plate castors - locks provided on front set

Door

• Lifetime guaranteed bolt style door lock standard
• Lifetime guaranteed heavy duty all metal working door handle
• Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four per door section
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning

Lighting

• LED interior lighting, safety shielded

Model Features

• Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer
• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Curb mounting ready
• NSF-7 compliant for open food product

Shelving

• 3 heavy-duty PVC-coated, wire shelves per section
