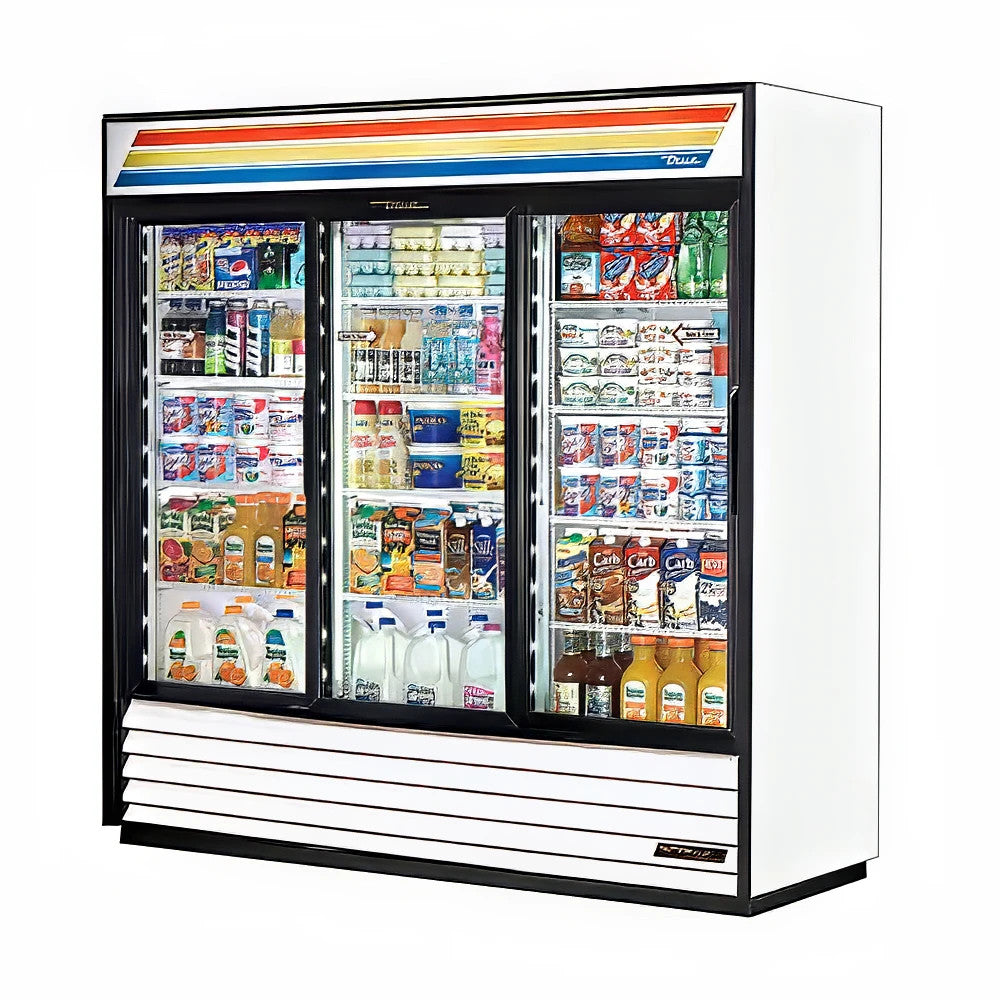

True GDM-69-HC-LD Three Section Sliding Door Refrigerated Merchandiser

The True GDM-69-HC-LD attractively merchandises your products and encourages impulse buys with it's "Low-E" double pane thermal insulated glass door and LED lighting. The merchandiser refrigerator has a durable, non-peel or chip black powder coated cold rolled steel; durable and permanent and an NSF approved white aluminum interior liner and stainless steel floor.

The GDM-69-HC-LD has an energy efficient, factory balanced, refrigeration system that holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

Specifications

• Model: GDM-69-HC-LD
• Doors: 3
• Shelves: 12
• Electrical:
• 1/2 HP
• 115/60/1
• 7.3 Amps
• 5-15P NEMA plug & 9' cord
• Dimensions: 78.13" W x 29.63" D x 78.63" H
• Warranty: 3-year warranty on all parts and labor and an additional 4-year warranty on compressor (U.S.A only)

Standard Features

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

CABINET CONSTRUCTION

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, NSF approved, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of sign options available.

DOOR

• “Low-E”, double pane thermal insulated glass door assemblies. The latest in energy efficient technology.
• Each front door fitted with 12” (305 mm) long handle.
• Self closing doors. Counter-balanced weight system for smooth, even, positive closing.

SHELVING

• Twelve (12) adjustable, heavy duty PVC coated wire shelves 23 7/8”L x 20 9/16”D (607 mm x 523 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

• LED interior lighting, safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Convenient clean-out drain built in cabinet floor.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
