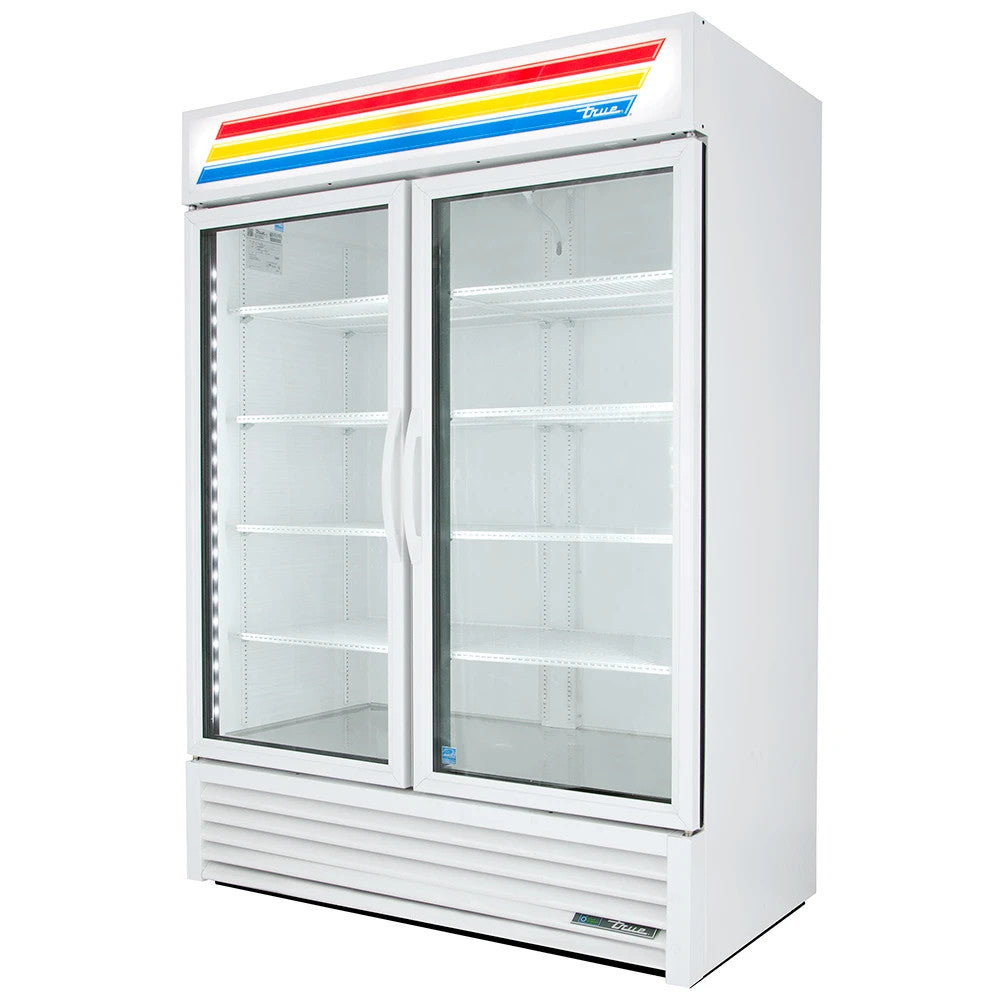

True GDM-49-HC~TSL01 54" Glass Door Refrigerated Merchandiser

The True GDM-49-HC~TSL01 attractively merchandises your products and encourages impulse buys with two "Low-E", double pane thermal glass swing doors and LED lighting. The refrigerated merchandiser has a durable, non-peel black powder coated cold rolled steel exterior and an NSF-approved white aluminum interior liner and stainless steel floor.

The GDM-49-HC~TSL01 uses the new environmentally friendly R290 hydrocarbon refrigerant. The energy-efficient, factory-balanced, refrigeration system holds 33°F to 38°F.

Specifications

• Model: GDM-49-HC~TSL01
• Doors: 2
• Shelves: 8
• Electrical:
• 1/2 HP
• 115/60/1
• 8.5 Amps
• 5-15P NEMA plug & 9' cord
• Dimensions: 54-1/8" W x 29-7/8" D x 78-5/8" H
• Warranty: 3-year warranty on all parts and labor and an additional 4-year warranty on compressor (U.S.A only)
• Energy Star

Standard Features

REFRIGERATION SYSTEM

• Factory-engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F for the best in food preservation.
• State-of-the-art, electronically commutated evaporator, and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption, and provides greater motor reliability.
• Bottom-mounted condensing unit positioned for easy maintenance. "No stoop" lower shelf maximizes visibility by raising merchandised products to a higher level.

CABINET CONSTRUCTION

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, NSF approved, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using high-density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy-duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. A variety of sign options are available.

DOOR

• Double pane thermal insulated glass swing doors. Black powder-coated frames.
• Door fitted with 12" long integrated handle.
• Self-closing doors. Counter-balanced weight system for smooth, even, positive closing.
• Magnetic door gaskets of one-piece construction, removable without tools for ease of cleaning.

SHELVING

• Eight (8) adjustable, heavy-duty PVC coated wire shelves 24 9/16”L x 22 1/2”D (624 mm x 572 mm). Four (4) chrome plated shelf clips are included per shelf.
• Shelf support pilasters made of the same material as cabinet interior; shelves are adjustable on 1/2" increments.

LIGHTING

• LED interior lighting, safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Convenient clean-out drain built in cabinet floor.
• Listed under NSF-7 for the storage and/or display of packaged or bottled products.

ELECTRICAL

• Unit is completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
