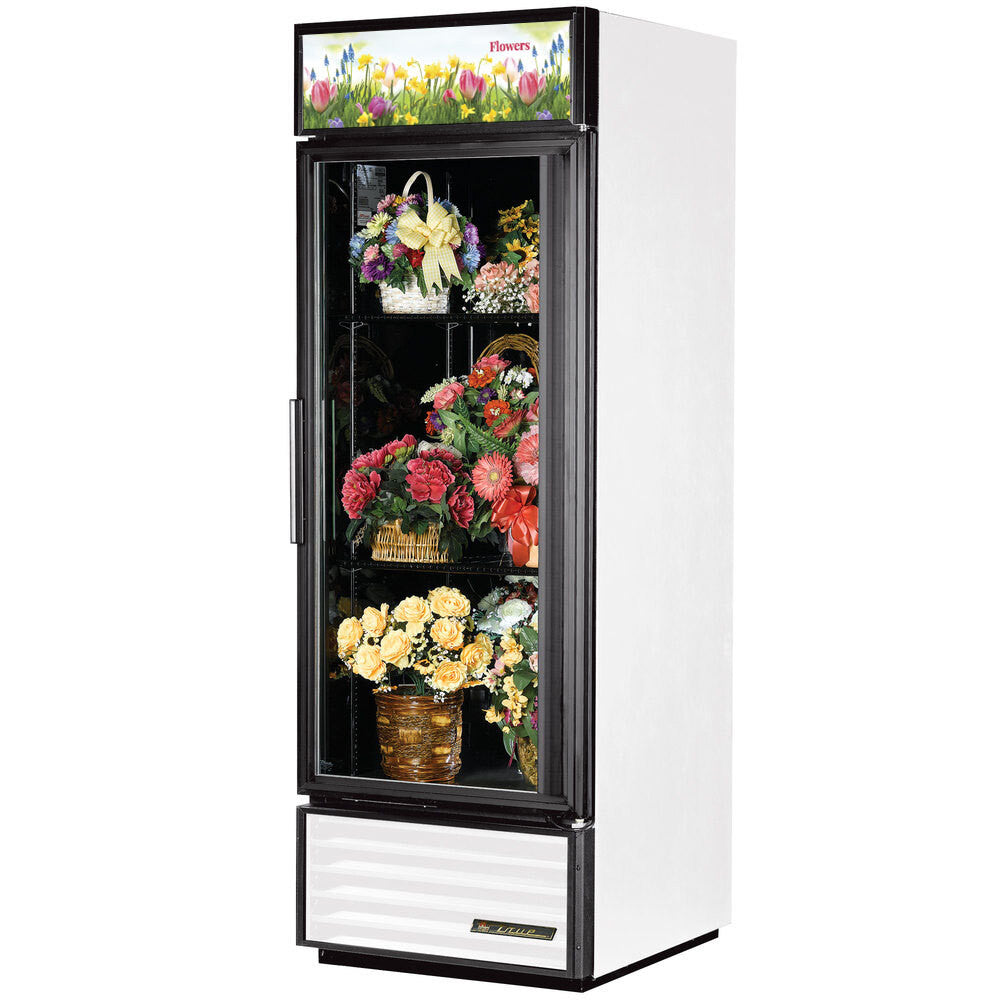

True GDM-23FC-HC~TSL01 Single Section Floral Merchandiser

The True GDM-23FC-HC~TSL01 glass door floral merchandiser offers baffled airflow design that creates an ideal environment to prolong fresh flower shelf life. True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with better product temperatures, and lower utility costs in a stylish merchandiser that brilliantly displays high profit floral arrangements in a dynamic display.

The GDM-23FC-HC~TSL01 refrigeration system features True's new standard R290 refrigerant. Environmentally friendly, this hydrocarbon refrigerant has zero (0) ozone depletion potential (ODP) and three (3) global warming potential. A high capacity, factory balanced refrigeration system is included. it's designed to accommodate a broad range of floral temperature settings and holds 35°F (1.6°C).

Specifications

• Model: GDM-23FC-HC~TSL01
• Doors: 1
• Shelves: 2
• Dimensions: 27" W x 29-7/8" D x 78-5/8" H
• Electrical:
• 1/3 HP
• 115/60/1
• 5.4 amps
• NEMA 5-15P plug & 9' cord
• Commercial Warranty: 3-year on all parts and labor and an additional 4-year on compressor (USA only)
• Energy Star Qualified
• Made in USA

Features

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of holds 35°F (1.6°C). Designed to accommodate a broad range of floral temperature settings.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
• Baffled airflow provides even air distribution for longer shelf life of fresh flowers.

CABINET CONSTRUCTION

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, NSF approved, black aluminum interior liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of sign options available.

DOOR

• Low-E, double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
• Each door fitted with 12” (305 mm) long black PVC handle.
• Self closing door. Positive seal, torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING

• Two (2) adjustable, heavy duty black PVC coated wire shelves 22 9/16”L x 23 1/4”D (574 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.

LIGHTING

• LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
