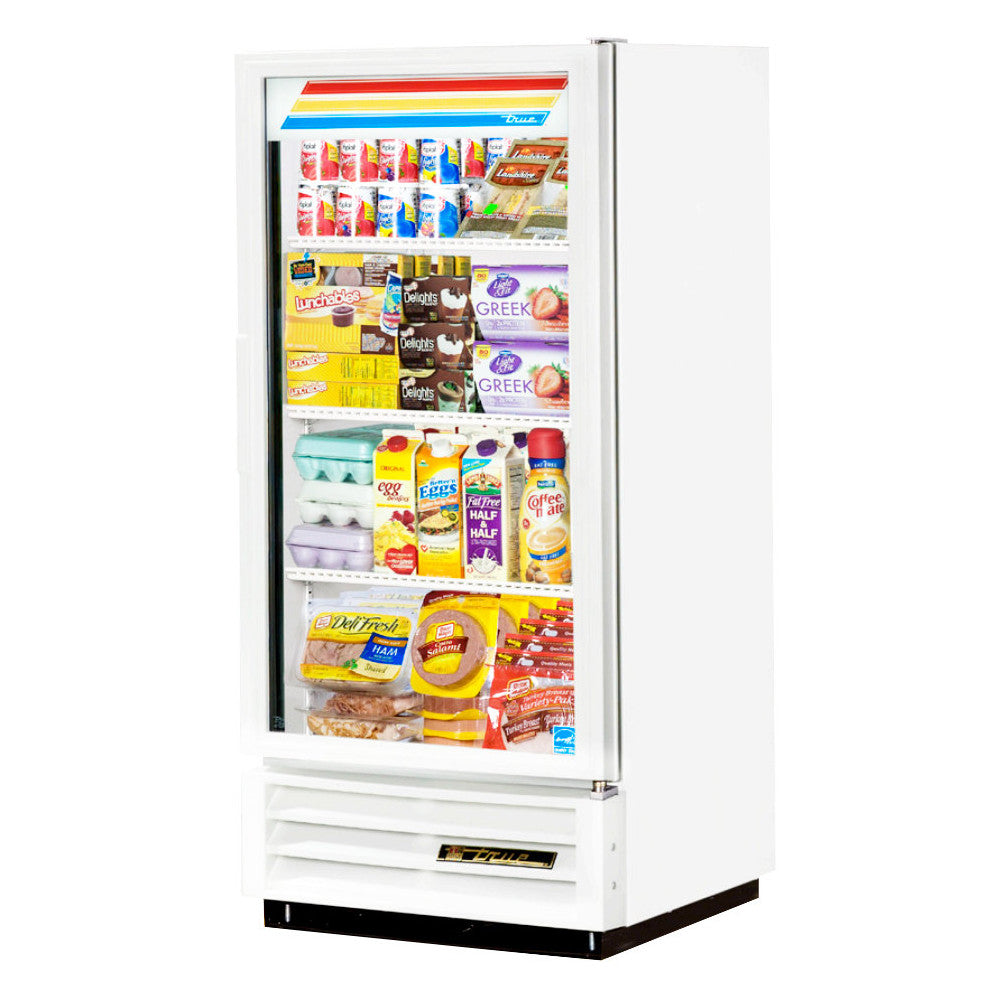

True GDM-10F-HC-LD 24" Glass Door Merchandiser Freezer with LED Lighting

The True GDM-10F-HC-LD attractively merchandises your products and encourages impulse buys with a triple pane thermal insulated glass door and LED lighting. The merchandiser freezer has a durable,non-peel or chip black powder coated cold rolled steel; durable and permanent and an NSF approved white aluminum interior liner and stainless steel floor.

The GDM-10F-HC-LD has an energy efficient, factory balanced, refrigeration system that holds -10°F. It is ideal for ice cream and frozen food products.

Specifications

• Model: GDM-10F-HC-LD
• Doors: 1
• Shelves: 3
• Electrical:
• 1/2 HP
• 115/60/1
• 4.5 Amps
• 5-15P NEMA plug & 9' cord
• Dimensions: 24-7/8" W x 23-1/8" D x 53-1/2" H
• Warranty: 3-year warranty on all parts and labor and an additional 4-year warranty on compressor (U.S.A only)

Standard Features

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. "No stoop" lower shelf maximizes visibility by raising merchandised product to higher level.
• Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

CABINET CONSTRUCTION

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Interior - attractive, NSF approved, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Door sign decal. Variety of decal options available.

DOOR

• Triple pane thermal insulated glass door assembly with extruded aluminum frame.
• Door fitted with 12" long integrated handle.
• Self-closing door. Positive seal, torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING

• Three (3) adjustable, heavy duty PVC coated wire shelves 20-13/16”L x 16-3/4”D (529 mm x 426 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

• LED interior lighting, safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Backguard and floor rack ensure optimum airflow.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
