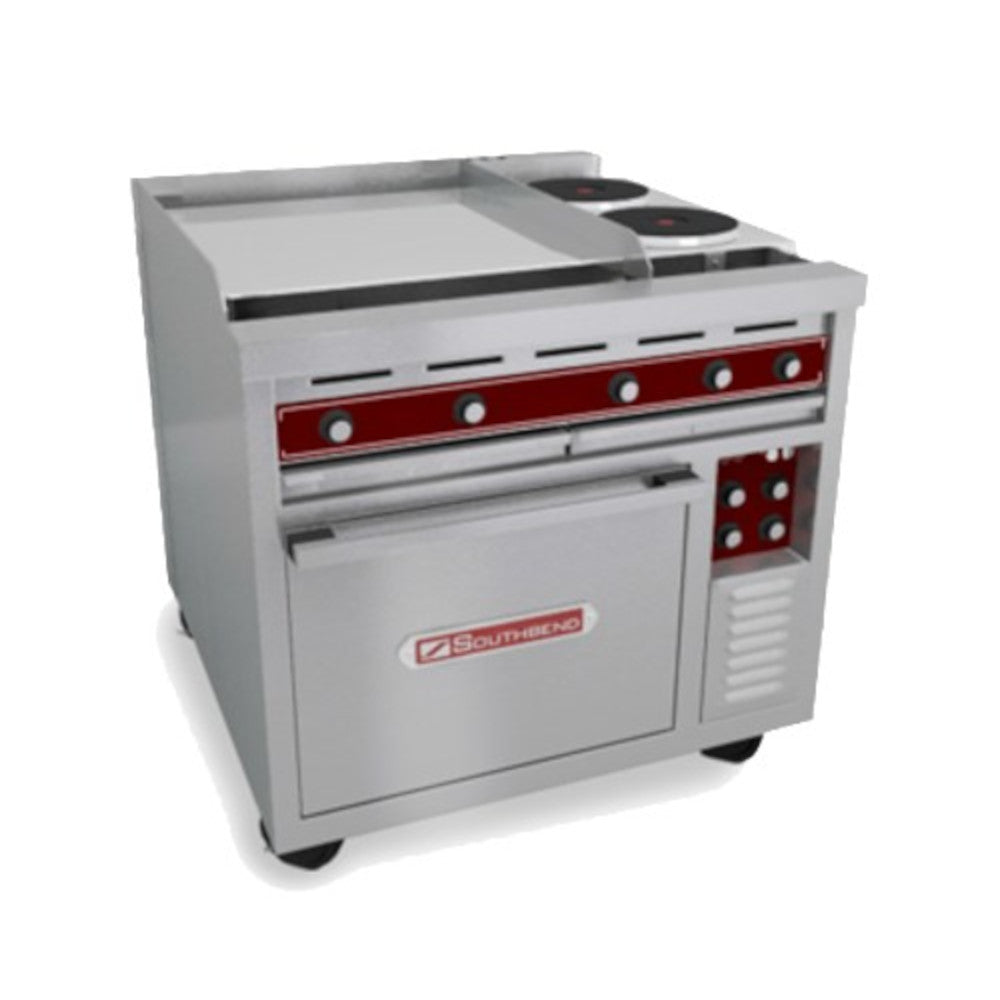

Southbend SE36A-TTT 36" Heavy-Duty Range with Griddle and Convection Oven

Taxes and shipping calculated at checkout
Available to Order (Usually ships within 1-2 weeks)
American Express
Apple Pay
Diners Club
Meta Pay
Google Pay
Shop Pay

Product information

Features and Benefits:

  • Saute, braise, pan fry, griddle, boil, stew, simmer, bake, brown, roast and reconstitute
  • Construction
    • 36" x 24" griddle top
    • The frame of the range and oven is welded aluminized steel with stainless steel front, sides and top
    • Grease troughs are located at front and rear for drainage, with grease chutes into two wide, drawertype receptacles
    • The griddle models are furnished with splash guards surrounding back and side of the griddle section
    • Range is 100% front serviceable
  • (1) Convection Oven
    • Stainless steel inner lining
    • Stainless steel throat
    • Vent with damper and shelf-type
    • Stainless steel lined door
    • Removable rack supports to accommodate six racks are installed on the interior sides of the oven
    • The blower fan is powered by a sealed ball bearing motor
    • Oven is fully insulated on all sides
  • Heating
    • Heating is accomplished with formed tubular elements clamped underneath each griddle and rectangular hotplate
    • 4 heating sections for the 36” x 24” griddle
  • Controls
    • Range-top section controls are mounted in a central ventilated control panel, hinged for easy service access
    • 9” solid round hotplates are controlled by an indicating 3-heat switch
    • Griddles are controlled by a thermostat with a temperature range of 150F to 450F
    • Range is provided with a 2 hour timer adjustable from 6 to 120 minutes (timer has a bell signal)
    • The oven temperature is controlled by a thermostat adjustable from 150F to 450F
    • Each thermostat is provided with an “OFF” position
    • Oven section includes a “HIGH”/”LOW” fan speed switch
  • Three racks with positive stops are furnished


  • Model: SE36A-TTT
  • Oven Capacity: (6) 20- 7/8” x 28-1/4” racks
  • Electrical Information:
    • Volts: 208
    • Hz: 60
    • Phase: 3
    • kW: 22.5
  • Warranty: Limited 1-year on range
  • Dimensions: 38.25" H x 36" W x 38.5" D
  • Approximate Weight: 700 lbs.
  • Certifications: cETLus, ETL-Sanitation
