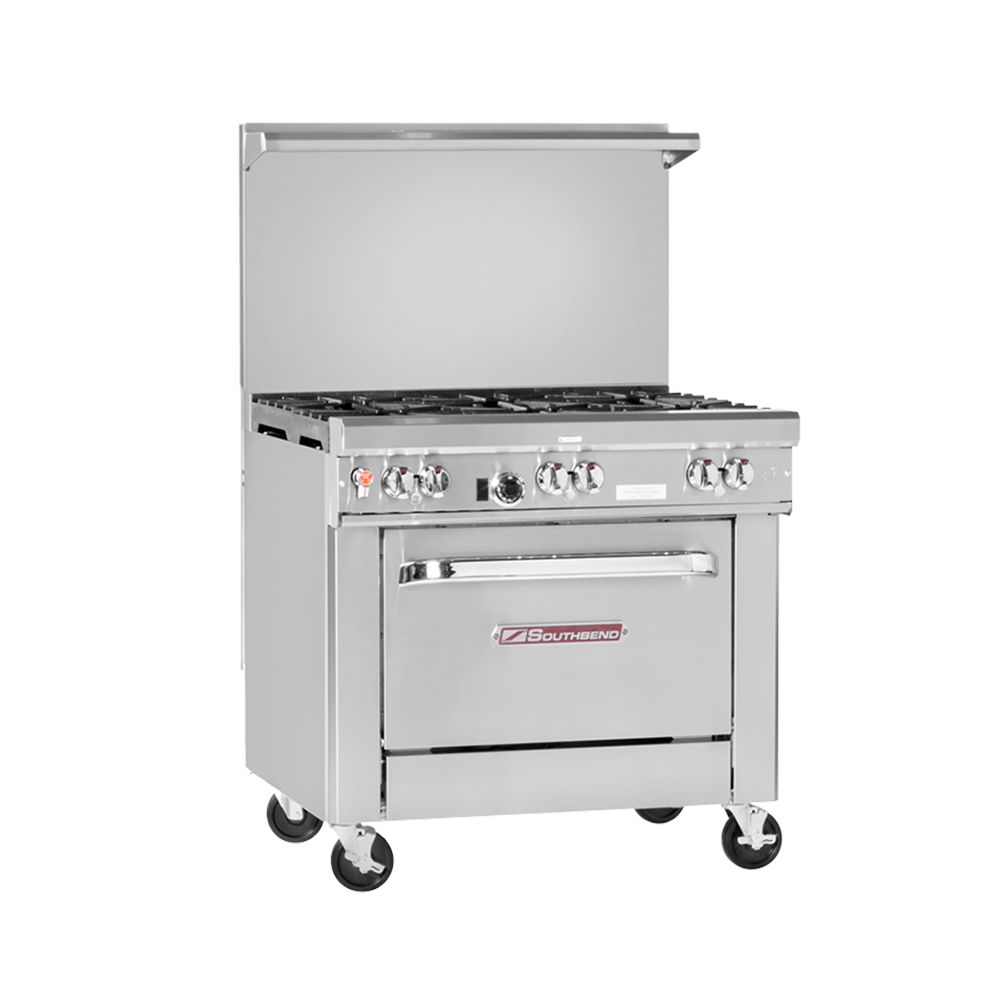

Southbend 4363A-2TR 36" Ultimate Restaurant Range with Thermostatic Controls - 146,000 BTU

Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Meta Pay
Google Pay
Shop Pay

Product information

This Southbend 4363A-2TR is ideal for flexible cooking applications. With a convection oven (convertible to standard), two star/saute burners, and a 24" charbroiler, it can steam, fry, boil, bake, grill and more. This Ultimate Restaurant Range has standard, removable grates and a single standing pilot for open burners. Its grates are made from cast iron for increased endurance and the back burners accommodate stock pots up to 14" around. The burners have front-located controls with a convenient gas shut-off switch. Its 24" griddle is right located and has a 1/2" thick cold rolled steel plate.

This 4363A-2TR Gas Ultimate Restaurant Range has a 32,000 BTU convection oven. It reaches temperatures between 175°F and 550°F, giving operators the ideal baking flexibility. It has a porcelain enamel interior for an easy cleaning process. Its three racks can be positioned five different ways to accommodate different sized pans and dishes.

Being a convection oven, warm air circulates evenly throughout and prevents hot spots from occurring in your menu items. It has a high efficiency, permanent split phase motor. The motor included permanently lubricated ball bearings, overload protection, and is class "B" insulated. The On/Off switch converts the convection oven to a standard.

Features and Benefits:

  • (2) star/saute burners
  • Standard grates
  • Thermostatic controls
  • 24" griddle, right-located
  • 1/2" thick cold rolled steel griddle plate
  • 22-1/2" flue riser with shelf
  • Commercial gas range 36” wide with a 37” high cooking top
  • 4” Stainless steel front rail, stainless steel front and sides
  • Front located manual gas shut-off to entire range
  • Factory installed Regulator
  • Removable, cast iron grate tops (rear holds up to 14” stock pot)
  • Standing pilot for open top burners
  • Battery spark ignition for oven bases
  • Convection Oven Models (A):
    • 32,000 BTU NAT convection oven
    • Standing pilot
    • 175°F to 550°F (79°C to 288°C) thermostat range
    • Porcelain enamel interior - 14" H x 26" W x 24" D
    • Three racks with five position side rails
    • High efficiency, permanent split phase motor
      • Permanent lubricated ball bearings
      • Overload protection
      • Class “B” insulation
    • On/Off switch to allow CO base to operate as a standard oven


  • Model: 4363A-2TR
  • Number of Burners: 2
  • Griddle Width: 24"
  • Total BTU: 146,000
  • Gas Type Must be Specified:
    • Natural
    • Liquid Propane
  • Electrical Information:
    • Volts: 115
    • Hz: 60
    • Phase: Single
    • Amps: 5.9
    • Cord: 6'
    • Plug: Included
  • Warranty: Limited 1-year
  • Dimensions: 59.5" H x 36.5" W x 43.6" D
  • Approximate Weight: 660 lbs.
  • Certifications: cCSAus, CSA Flame, CSA Star, NSF
