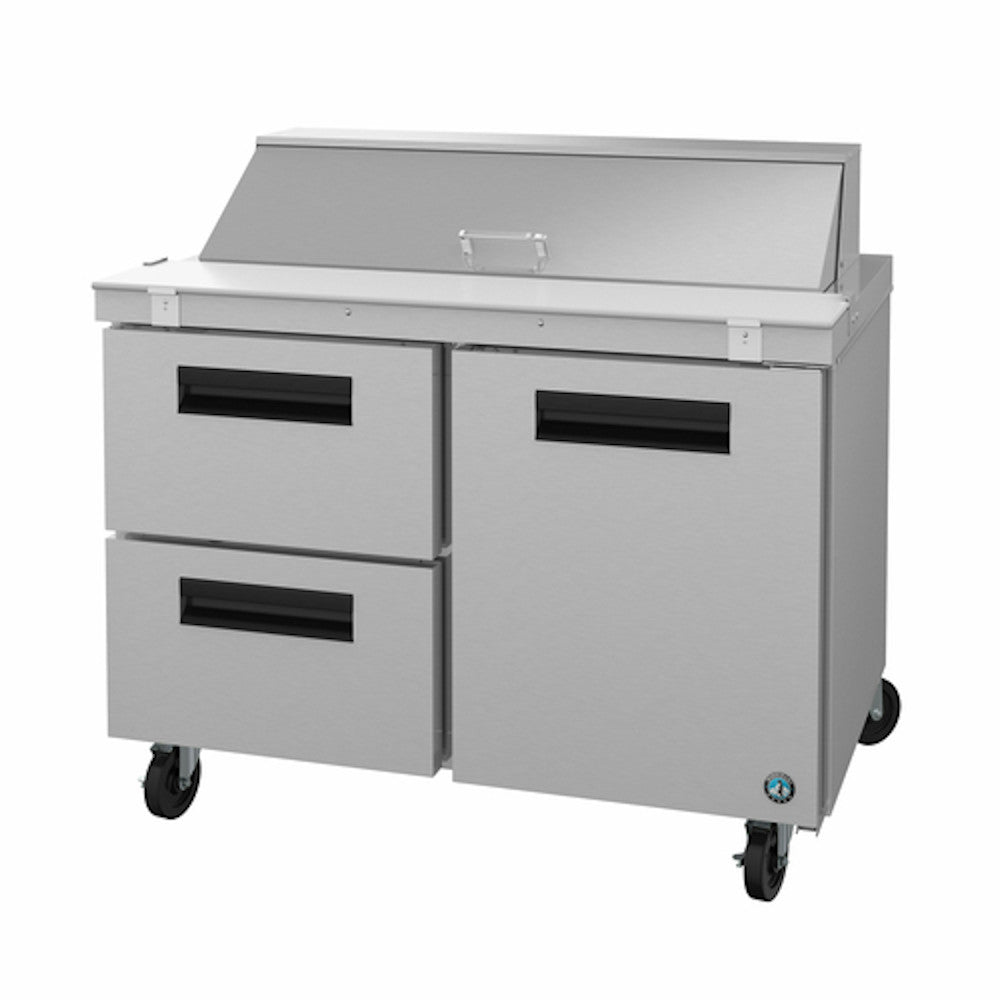

Hoshizaki SR48B-12D2 Steelheart 48" Sandwich Top Refrigerator

Hoshizaki's SR48B-12D2 is a sandwich top reach-in refrigerator. It has a stainless steel exterior front, sides, top and interior sides, back and floor. This provides it with increased durability and makes it easy to clean. The cabinet and drawers have been insulated with 2” CFC free, foamed in place polyurethane.

The SR48B-12D2 has a self-contained rear mounted refrigeration system that uses environmentally friendly R290 hydrocarbon refrigerant. It is engineered to maintain NSF-7 temperatures in 100°F ambient.

Benefits and Features:

• Engineered to maintain NSF-7 temperatures in 100°F ambient. (Certified to NSF-7 temperatures in 86°F ambient.)
• Stainless steel exterior front, sides and top with stainless steel interior sides, back, and floor
• Front breathing air flow design
• Environmentally friendly R290 hydrocarbon refrigerant
• Cabinet, doors, and drawers are insulated with 2” CFC free, foamed in place polyurethane
• Innovative air distribution system distributes air evenly to maintain product temperature
• Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
• Drawer frames are formed of 16 gauge stainless steel and securely fastened in the cabinet
• Top and bottom drawers will accommodate (1) ½ size pan & (1) 1/3 size pan. In addition, top drawer will also accommodate (1) ¼ size pan and (1) 1/6 size pan. Alternate pan orientation (top drawers only) provides (1) full size pan positioned longways front to back and (3) 1/9 size pans.
• One epoxy coated shelf per door section is standard
• Extruded aluminum flush mount drawer handle
• Magnetic door gasket is easily removable for cleaning
• 48” x 10” x 1/2” thick white polyethylene cutting board is standard
• Provided with a full complement of polycarbonate plastic 1/6th size pans, 4” deep
• Rails will also accept 6” deep pans for 50% more pan volume
• Removable stainless steel prep guard simplifies cleanup from accidental rail pan drips and spills
• E-coated evaporator coil
• Standard with 6” casters (two with brakes)

Specifications:

• Model: SR48B-12D2
• Capacity: 13.66 cu. ft.
• Electrical Information:
• Volts: 115
• Hz: 60
• Phase: Single
• Amps: 2.5
• HP: 1/5
• Cord: 10'
• Plug: NEMA 5-15P
• Warranty Information:
• 3-year parts and labor on the entire machine
• 5-year parts on the compressor
• Dimensions: 44.25" H x 48" W x 31" D
• Approximate Weight: 335 lbs.
• Certifications: cETLus, ETL-Sanitation
• Made to order: Allow 4-6 week lead time
