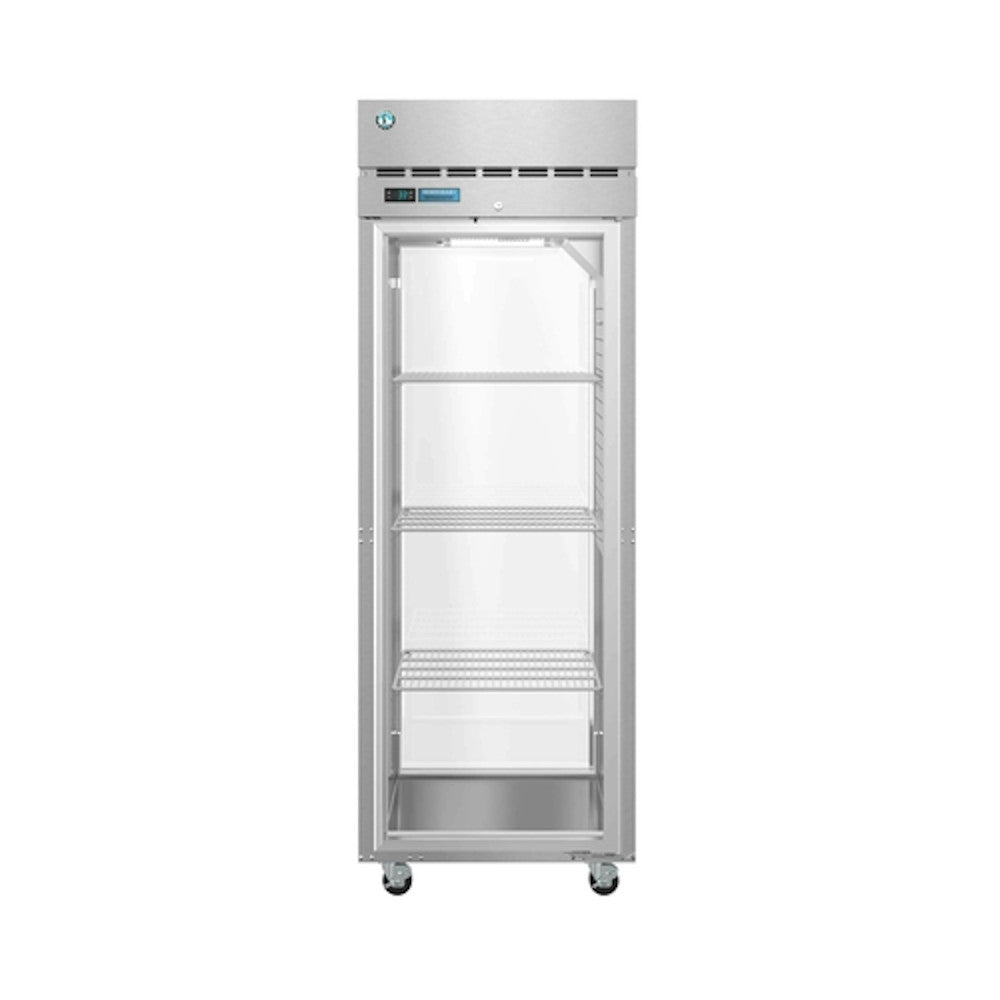

Hoshizaki PT1A-FG-FG Pass-Thru Steelheart Refrigerator

Hoshizaki's pass-thru refrigeration line is beautiful, easy to use, durable, and ideal for your commercial kitchen. The PT1A-FG-FG has a stainless steel exterior, interior, and glass doors. The doors allow operators a clear view into its interior. Energy-efficient multi-pane, argon-filled glass doors come with locks to keep items safe. The interior LED lights are vertical and energy-efficient as well. The refrigerant system uses R290 hydrocarbon refrigerant, an environmentally friendly option. With sturdy hinges and self-closing doors, the unit is engineered for strength and ease of use. The PT1A-FG-FG comes with epoxy coated shelves so operators can keep the interior organized.

Benefits and Features:

• Pass-thru refrigeration unit
• Top mounted self-contained refrigeration system
• Full height right hinged glass doors
• Maximum interior storage capacity with smallest external footprint
• Stainless steel interior with stainless steel exterior front, sides and top
• Unique ducted air distribution system
• (2x) Vertical energy efficient interior LED lights
• Environmentally friendly R290 hydrocarbon refrigerant
• Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
• Cabinet is insulated with 2-3/8” of CFC free,foamed in place polyurethane
• Glass doors are energy efficient multi-pane, argon filled with locks
• Exclusive stepped door design to protect recessed door gasket
• Spring assisted self-closing doors with stay open feature
• Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
• Extruded aluminum flush mount door handle
• Field reversible doors
• Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
• Energy efficient automatic hot gas condensate evaporator
• Top mount refrigeration comes standard with a condenser filter
• Refrigerant flow is controlled with thermostatic expansion valve
• Stainless steel shelf supports
• (3) epoxy coated wire shelves are standard
• Standard with 4” casters (two with brakes)

Specifications:

• Model: PT1A-FG-FG
• Capacity: 24.2 cu. ft.
• Electrical Information:
• Volts: 115
• Hz: 60
• Phase: Single
• Amps: 5.0
• HP: 1/4
• Cord: 10'
• Plug: NEMA 5-15P
• Warranty Information:
• 3-year parts and labor on the entire machine
• 5-year parts on the compressor
• Dimensions: 79.5" H x 27.5" W x 37.75" D
• Approximate Weight: 367 lbs.
• Certifications: cETLus, ETL-Sanitation
