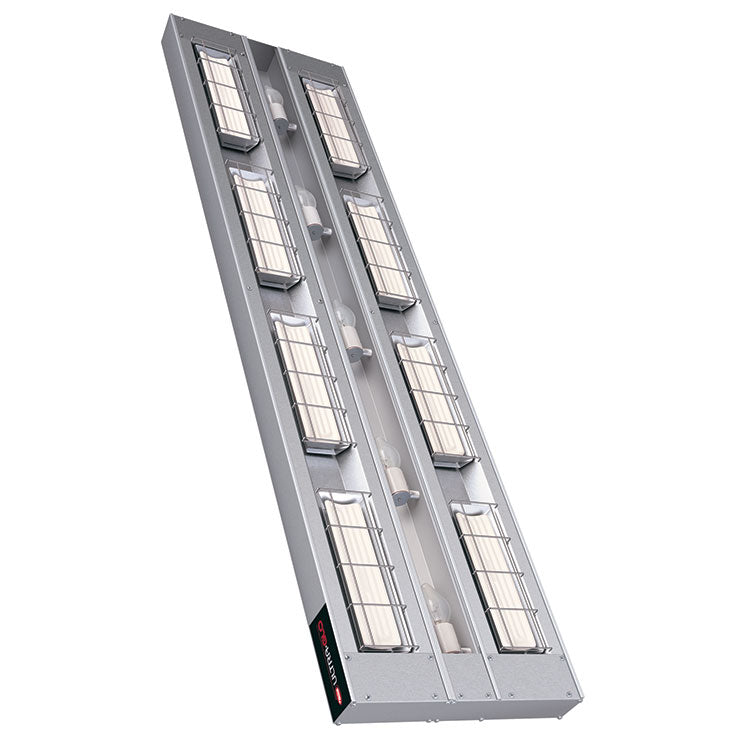

Hatco UGAL-42D6 Infrared 2420 Watt Heat Lamp with Lights and 6" Spacer

Price
$1,570.90
Taxes and shipping calculated at checkout
In stock and ready for shipping
Amazon
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Product information

This Hatco UGAL-42D6 Infrared 2420 Watt Heat Lamp with Lights and 6" Spacer is ideal for keeping large amounts of food products warm and ready to be served. With ultimate holding power, this Infrared Heat Lamp blankets the entire holding surface with pre-focused heat, even the outer edges where heat loss is the greatest. This Foodwarmer is designed to be adaptable for any location or configuration and has increased height so you can have improved working clearance. With a double ceramic heat strip and aluminum housing, this Heat Lamp comes with adjustable angle brackets for convenient mounting. Leadtime may vary, please call for details.

Features and Benefits:

  • Standard wattage
  • 6" Spacer
  • Double ceramic heat strip
  • Aluminum housing
  • Adjustable angle brackets
  • Sturdy continuous extruded aluminum housings eliminate sagging
  • Adjustable angle brackets for mounting and leads with 3' (914 mm) conduit whip
  • Pre-focused heat pattern provides an increased pyramidal dimension, concentrating heat at the edges where heat loss is the greatest

Different voltage available-Please specify!

120/208 Volts Watts Amps
Circuit 1 208V 1120 5.4
Circuit 2 120/208V 1300 6.9
120/240 Volts Watts Amps
Circuit 1 240V 1200 5.0
Circuit 2 120/240 1380 5.6
220 Volts Watts Amps
Circuit 1 220V 1008 4.6
Circuit 2 220V 1258 5.7
120/208 Volts Watts Amps
Circuit 1 240V 1200 5.0
Circuit 2 240V 1380 5.8

*Unit with multiple circuit connections. Each circuit may require a separate circuit breaker.

Specifications:

  • Model: UGAL-42D6
  • Dimensions: (H x W x D): 2.5" x 42" x 18.82"
  • Mounting Requirements: Must be mounted at least 1" (25 mm) below shelf, and 3" (76 mm) from back wall.
  • Mounting Height: 18"-22" (457-559 mm)
  • Minimum Space Clearance: Do not install Ultra-Glo® strip heaters above or around combustible surfaces.
  • Shipping Weight: 27 lbs (12 kg)
  • Warranty: All ceramic heating elements warranted against burnout for one year
