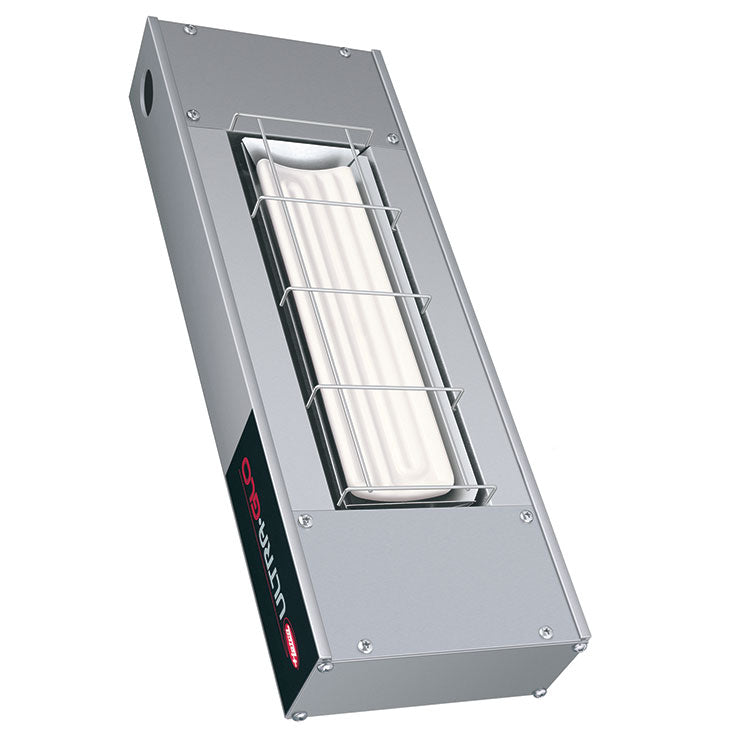

Hatco UGAH-66D3 High Wattage Infrared Heat Lamp with Double Ceramic Heat Strip

Price
$2,147.68
Taxes and shipping calculated at checkout
In stock and ready for shipping
Amazon
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Product information

This Hatco UGAH-66D3 High Wattage Infrared Heat Lamp with Double Ceramic Heat Strip is ideal for keeping large amounts of food products warm and ready to be served. With ultimate holding power, this Infrared Heat Lamp blankets the entire holding surface with pre-focused heat, even the outer edges where heat loss is the greatest. This Foodwarmer is designed to be adaptable for any location or configuration and has increased height so you can have improved working clearance. With a double ceramic heat strip and aluminum housing, this Heat Lamp comes with adjustable angle brackets for convenient mounting. Leadtime may vary, please call for details.

Features and Benefits:

  • High wattage (5400 watts)
  • 3" Spacer
  • Double ceramic heat strip
  • Aluminum housing
  • Adjustable angle brackets
  • Sturdy continuous extruded aluminum housings eliminate sagging
  • Adjustable angle brackets for mounting and leads with 3' (914 mm) conduit whip
  • Pre-focused heat pattern provides an increased pyramidal dimension, concentrating heat at the edges where heat loss is the greatest

Different voltage available-Please specify!

Volts Watts Amps
208 2700 13.0
240 2600 10.8
220 2520 11.5

*Unit with multiple circuit connections. Each circuit may require a separate circuit breaker.

Specifications:

  • Model: UGAH-66D3
  • Dimensions: (H x W x D*): 2.5" x 66" x 15-18.82"
  • Mounting Requirements: Must be mounted at least 1" (25 mm) below shelf, and 3" (76 mm) from back wall.
  • Mounting Height: 22" to 26" (559-660 mm)
  • Minimum Space Clearance: Do not install Ultra-Glo® strip heaters above or around combustible surfaces.
  • Shipping Weight: 40 lbs (18 kg)
  • Warranty: All ceramic heating elements warranted against burnout for one year
  • *Add 3" (76 mm) to depth when ordering dual models with 6" (152 mm) spacer.
