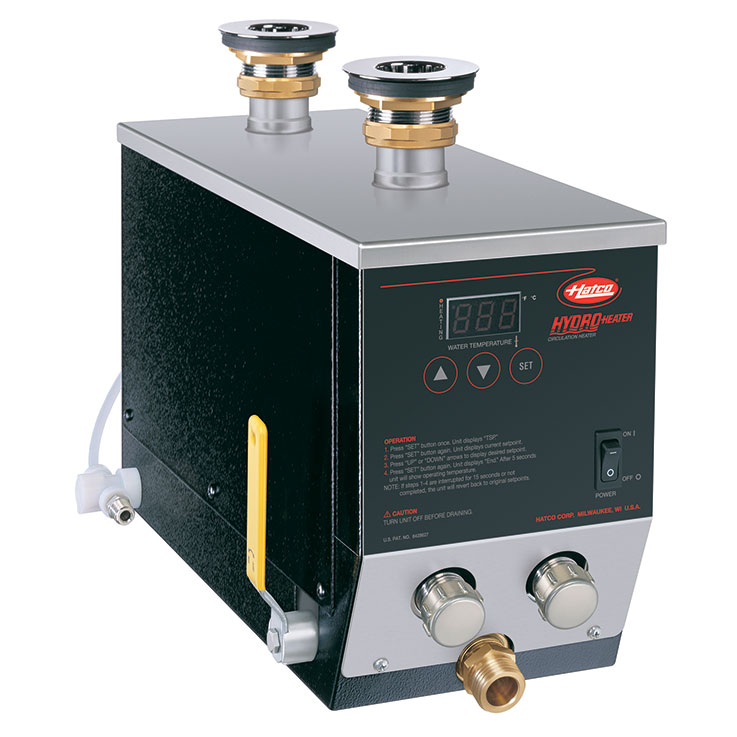

Hatco 3CS2-4 Hydro-Heater Sanitizing Sink with Undersink Design

American made, this Hatco 3CS2-4 Hydro-Heater Sanitizing Sink with Undersink Design is ideal for pot, pan, or bar sinks with 3-4 compartments. Its undersink design makes it perfect for areas with limited space and its heating system keeps water consistently within safe sanitizing temperatures. Drawing cold water in, it uses a "free-flow" technology and advanced electronic control to circulate warm water back out into the sink. Heating elements are wrapped around the outside of the flow tube to increase its life-span. With responsive and efficient operation, this Sanitizing Sink Heater has a stainless steel front, powdercoated body, low-water cut off system, and convenient drain outlet and clean-out caps. Leadtime may vary, please call for details.

Features and Benefits:

• Undersink design
• Stainless steel front
• Powdercoated body
• Low-water cut-off system
• Convenient drain outlet
• Clean-out caps
• Uses a combination of "free-flow" technology and advanced electronic controls for circulation of hot water by natural convection in a sanitizing sink
• Heating elements are wrapped around the outside of the flow tube, reducing sediment and lime buildup on the element, resulting in longer life
• A special electronic controller maintains the setpoint temperature ensuring a responsive and efficient operation
• Made in USA

Water Quality Requirements

• Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of hardness per liter) must be treated and softened before being supplied to water heater(s). Water containing over 3.0 GPG (.75 GPL) will decrease the efficiency and reduce the operating life of the unit.
• Note: Product failure caused by liming or sediment buildup is not covered under warranty.

Different voltage available-Please specify!

Specifications:

• Model: 3CS2-4
• Dimensions (W x D x H): 7.75" x 17.06" x 12.36" (196 x 433 x 314 mm)
• Sink Area: 16-18" (406-457 mm) Sq.
• Wiring Sizing AWG*^: 10
• Fuse or Circuit Breaker^: 30
• Shipping Weight (including packaging): 31 lbs. (14 kg)
• *Wire size is based on THHN copper wire for branch circuit protection at 0.91 derate factor. Circuit breakers and fused disconnects are to be mounted remote and wired by contractor. Sizes are based on the 2002 NEC table 310-16. Conduit size based on conductors plus ground wire sizing.
• ^Based upon THHN wire rated 90ºC.
