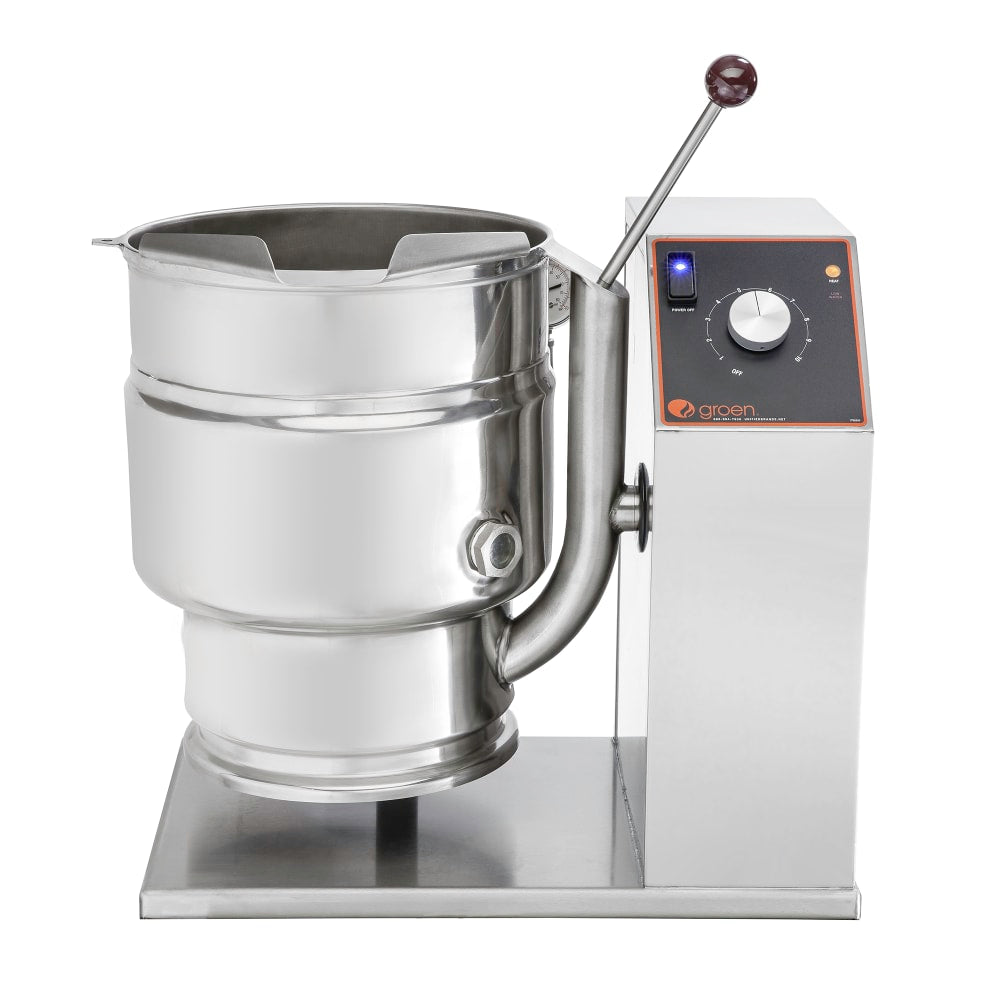

Groen TDB-40,TA/2 Countertop 10-Gallon Electric Kettle/Cooker Mixer - 10.8 kW

Designed for use in commercial-grade kitchens, Groen's TDB-40,TA/2 is a 10-Gallon Electric Kettle/Cooker Mixer. It has a stainless steel, solid one-piece welded construction with a stainless steel, solid one-piece jacket. Its console and exposed surfaces are also stainless steel. The rim has been heavily reinforced and has a butterfly shaped pouring lip. The butterfly shape helps ensure maximum sanitation and durability. This Kettle/Cooker Mixer has a right or left hand tilt handle and comes with a double pantry faucet.

This TDB-40,TA/2 has several easy to use controls and safety features. Its controls include a thermostat, built in contactor, pressure gauge, and an agitator on-off, variable speed switch. While these controls regulate the Kettle's operation, its front mounted water sight glass and heating indicator lamp keep operators aware of its operating status. The safety features protect both the unit itself and its operator. They include a safety tilt cut-off, pressure relief valve, high limit pressure switch, low water cut off and agitator safety tilt cut off.

Features and Benefits:

• Construction
• 316 stainless steel, solid one-piece welded kettle construction
• Type 304 stainless steel, solid one-piece kettle jacket
• Console and all exposed surfaces are stainless steel
• Furnished with a heavy reinforced rim
• Butterfly shaped pouring lip for maximum sanitation and durability
• Right or left hand tilt handle
• Double pantry faucet
• Etch markings for measuring quantity of fill provide
• Finish
• 180 emery grit kettle interior finish
• Bright semi-deluxe kettle exterior finish
• Ensures maximum ease in cleaning
• Maintains brilliant appearance
• Agitator Assembly
• Twin shaft with variable speed drive and 1/2 horsepower motor
• Motor drive, gears, and electrical components are contained in a stainless steel housing
• Twin agitator manually tilts out of the kettle
• Primary agitator continuously scrapes the kettle walls
• Secondary mixer is counter rotating high-speed agitator
• Electrically-heated Self-Contained Steam Source
• Provides kettle temperatures of 150°F to 298°F
• Factory charged with chemically pure water and rust inhibitors to ensure long life and minimum maintenance
• Controls
• Thermostat
• Built-in contactor
• Pressure gauge
• Front mounted water sight glass
• Heating indicator lamp
• Agitator on-off and variable speed control switch
• Safety Features
• Safety tilt cut-off (cuts off heat when tilted to 12°F and above)
• Pressure relief valve
• High limit pressure switch
• Low water cut off
• Agitator safety tilt cut off
• Performance Features
• Thermostatically controlled
• Automatically shuts off when desired temperature is reached
• Automatically turns on when product falls below desired temperature
• Design makes it possible for one person to tilt kettle, even when kettle is filled to capacity
• Agitator speed can be controlled to meet the mixing requirements for product blending
• Double-pantry hot and cold faucet allows operators to add hot or cold water while cooking and cleaning
• Acid-etched fill gallonage markings make it easy to measure food product amounts

Specifications:

• Model: TDB-40,TA/2
• Capacity: 10-gallons
• PSI: 50
• Standard Kettle Voltage:
• Volts: 208
• Hz: 60
• Phase: 3
• kW: 10.8
• Amps: 30.0
• Additional voltage options available - Please contact us for details.
• Agitator Voltage:
• Volts: 115
• Hz: 60
• Phase: Single
• Warranty Information:
• 1-year parts and labor
• 10-year kettle and body
• Dimensions: 24.88" H x 27.5" W x 30.5" D
• Approximate Weight: 340 lbs.
