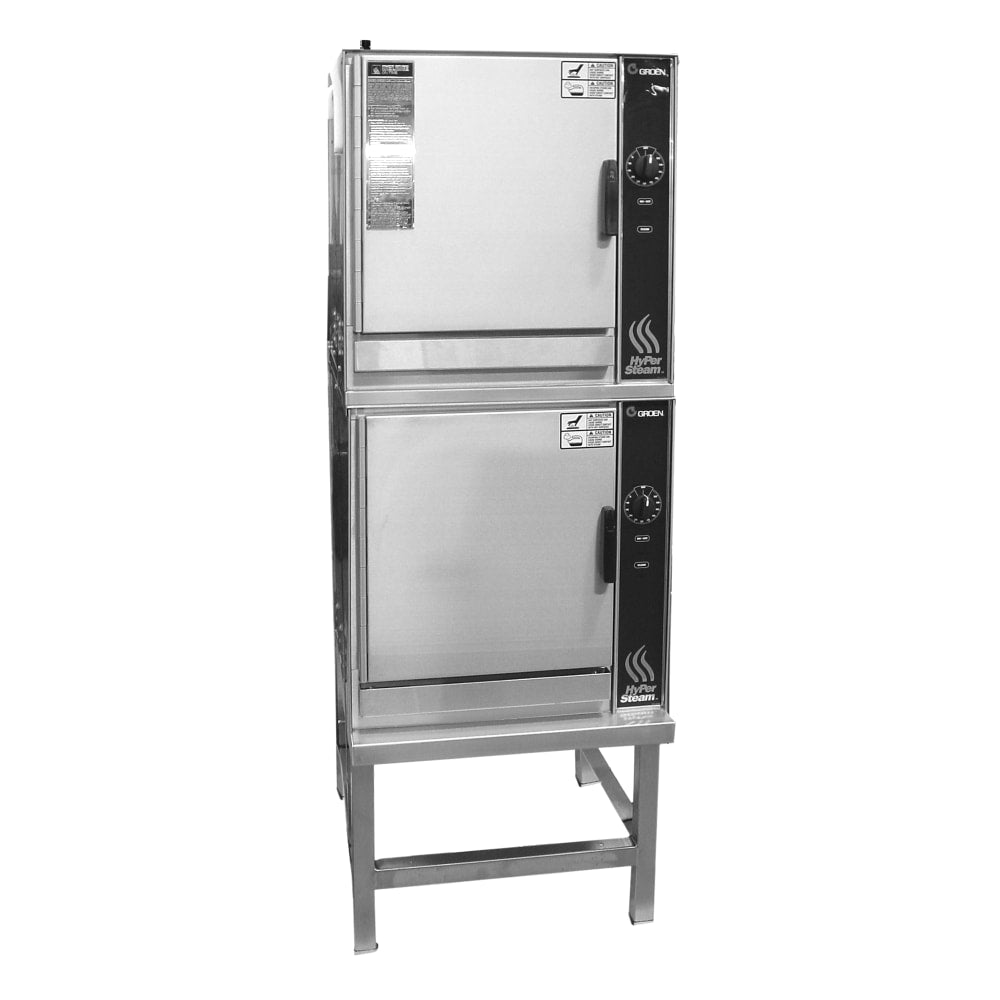

Groen (2)HY-5EF Stand Mount Double-Stacked HyperSteam Convection Steamer

This Groen (2)HY-5EF Stand Mount Double-Stacked HyperSteam Convection Steamer is durable, easy to use, and offers reliable performance. Its construction is primarily made from stainless steel. Its cavity and cabinet have removable panels to provide easy access to internal components, making it easy to service when needed. The doors are stainless steel and have strong continuous hinges for increased durability and flexibility. This (2)HY-5EF has stainless steel pan support racks and a condensate collection tray for easy cleaning.

With an ON-OFF power button, 60-minute timer, continuous steam setting, and READY light, this Convection Steamer is simple to use. Its ready light indicates when the cavity is warm and ready for steaming. It warms up in 10 minutes or less and doesn't require any warm up time once the READY light comes on. It shuts itself off automatically when the water becomes low. Its indicator light alerts operators when the generator needs to be delimed.

Features and Benefits:

• Construction
• Each steamer cavity and cabinet has a stainless steel construction
• Removable right and let side panels providing access to internal components
• Steamer doors are stainless steel with strong continuous hinge
• Doors are field reversible for left or right swing and have a one-piece, replaceable seal
• Easy open handle and latch provides positive lock and seal when door is pushed or slammed shut
• Hidden magnetic door switch cuts power to blower and shuts down power to generator when the door is opened
• Pan support racks are polished stainless steel and are removable for easy cleaning
• Stainless steel condensate collection tray is positioned under each cavity door
• Finish
• Cabinet exterior including doors are finished to a #3 uniform finish
• Cavity interiors are polished stainless steel
• Control panel face plates shall be smudge resistant polyester film, ensuring maximum ease in cleaning and maintaining an attractive appearance
• Sanitation
• Allows operator to delime steam generator through deliming port on top, without tools or service calls
• Push button auto-clean feature is standard
• Controls
• An ON-OFF power button
• 60-minute mechanical timer
• Continuous steam setting
• READY light indicates when cavity is warm and ready for steaming
• Auto-clean button initiates deliming cycle for each unit
• Performance Features
• Each steamer has a powerful side blower which increases steam velocity and provides efficient steam distribution
• Steam generator delivers 3.1 kW power input per 2-1/2" deep steam pan
• Heat up time to READY is 10 minutes are less under normal conditions
• Cavity is kept warm and ready for instant steam between loads
• No cavity warm up required, after READY light comes on
• Delime indicator light warns operator of need to delime steam generator
• Unit shuts off if water level is low
• When power is turned "off," it automatically blows down the steam generator to reduce sediment build-up
• Atmospheric Steam Generator
• Each unit has an electric heated rear mounted steam generator
• Provides atmospheric steam to the chamber at a temperature of approximately 212°F
• Steam generator has an electric water sensor
• Electric heating elements are replaceable from the side

Specifications:

• Model: (2)HY-5EF
• Pan Capacity per Cavity:
• 12" x 20" x 1" pans: 10
• 12" x 20" x 2-1/2" pans: 5
• 12" x 20" x 4" pans: 3
• Installation Requirements
• Two 3/4" NH cold water supply lines
• 2" free venting drain
• Water Supply Requirements
• All steam systems are subject to contamination and failure due to mineral content found in all water supplies
• To minimize service problems, a Groen PureSteam Water Treatment System is recommended (not included)
• Electrical Information:
• (2) Volts: 208
• (2) Hz: 60
• (2) Phase: 3
• (2) kW: 15.5
• (2) Amps: 44.0
• Warranty Information:
• Parts and Labor: 1-year
• Cavity: 5-year
• Dimensions: 64.38" H x 21.63" W x 33.38" D
• Approximate Weight: 540 lbs.
• Certifications: cUL, UL, NSF
