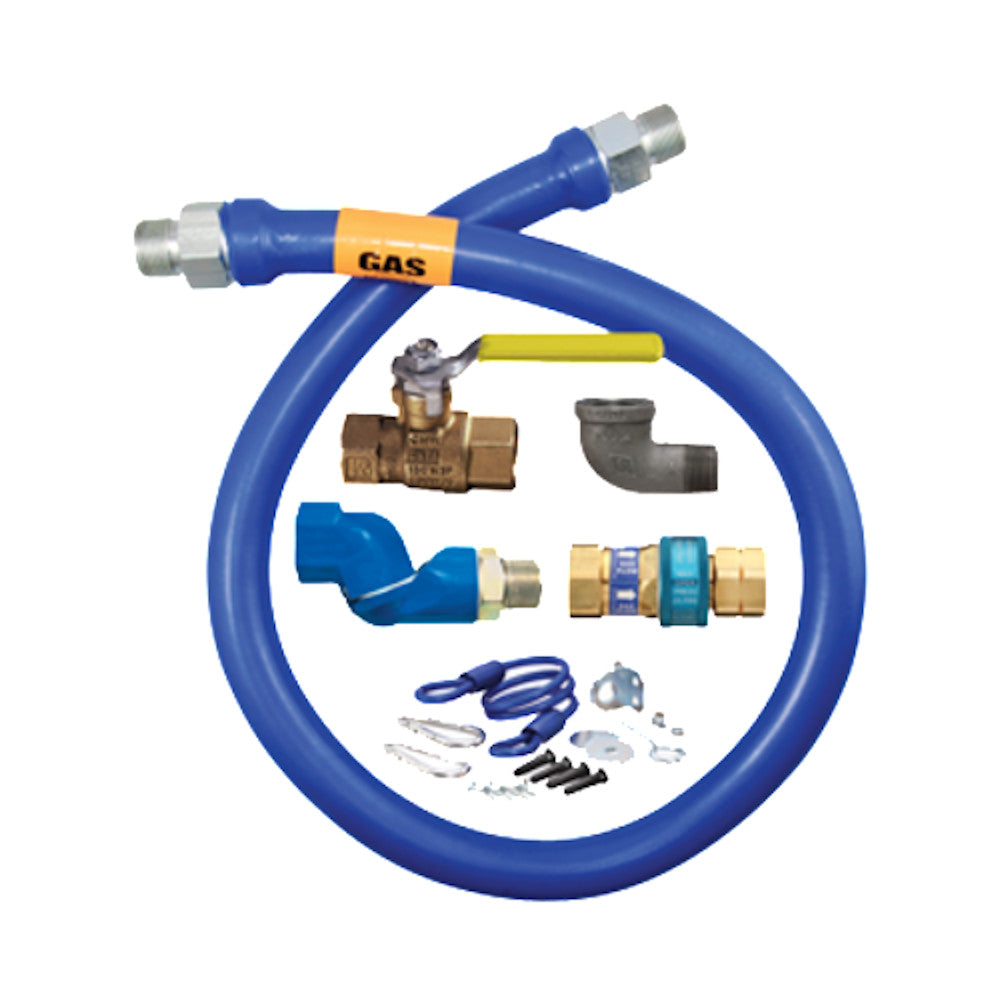

Dormont 16100KITS48 Blue Hose™ Movable 48" Gas Connector Kit

Single Swivel MAX®/SnapFast® Quick-Disconnect Assemblies feature flexible movement and the one-handed, quick-disconnect fitting with a unique thermal shut-off design that automatically shuts off the gas when the internal temperature exceeds 350°F (177°C). The 360° movement of Swivel MAX adds extra protection to the life of the connector and increases kitchen aisle space by allowing the appliance to be closer to the wall.

Features

Swivel MAX®

• Multi-plane Fitting: Aluminum body, plated steel fitting
• Movement: 360° rotational end fitting

The Safety Quik® Quick-Disconnect Valve:

• Quick-Disconnect: Brass body, carbon steel safety sleeve; Flat face, push-to-connect
• Protection Valve: quick-disconnect; Full port, brass gas ball valve
• Thermal Shut-off: Shuts off gas flow within a temperature range of 250ºF - 300ºF (121ºC - 149ºC)

Specifications:

THE DORMONT BLUE HOSE:

• Tubing: Annealed, 304 stainless steel (ASTM A240)
• Braiding: Multi-strand, 304 stainless steel wire
• Coating: Blue antimicrobial PVC, melts at 350ºF (177ºC) coating will not hold a flame
• End Fittings: Carbon steel; zinc and yellow dichromate coating
• Stress Guard: 360°rotation of end fittings at both ends before and after installation (patent pending)
