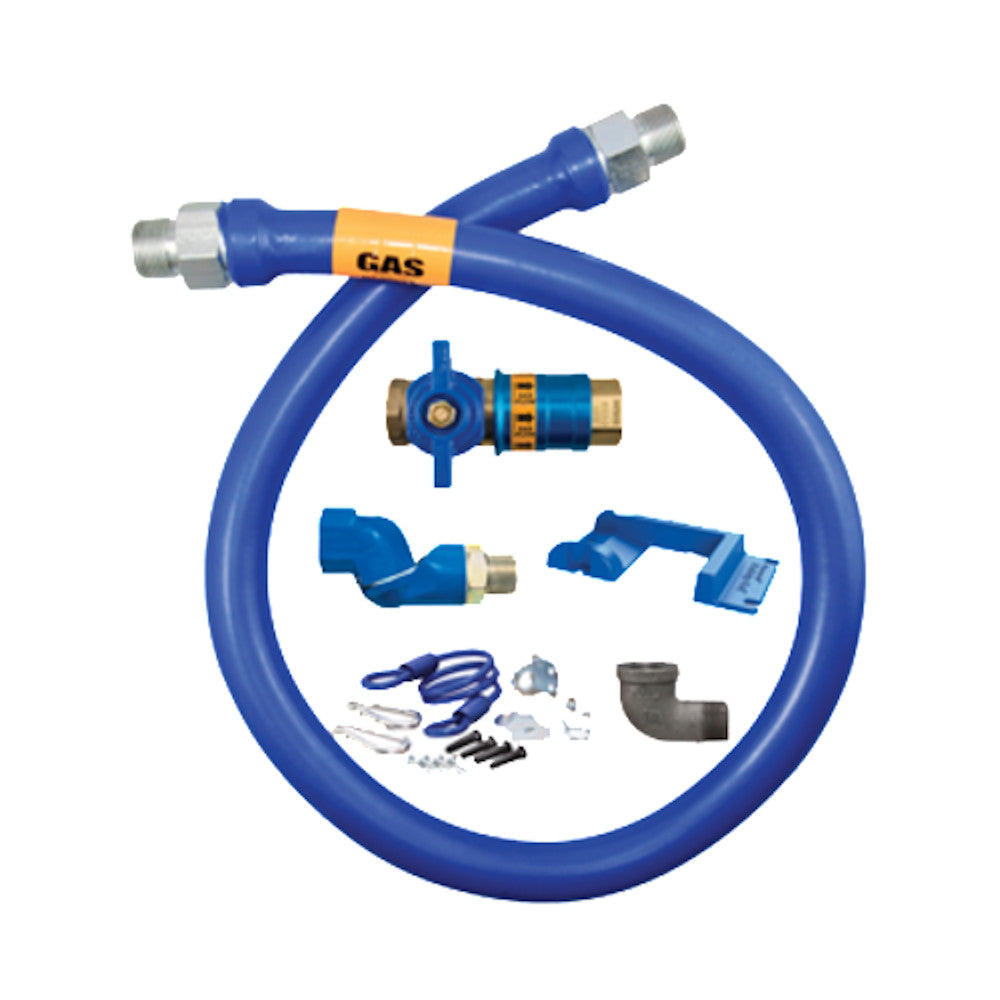

Dormont 16100KITCFS36PS Blue Hose™ Movable 36" Gas Connector Kit

Single Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies feature flexible movement and the quickdisconnect protection valve that combines one-handed quick-disconnect functionality with a unique safety shut-off feature that protects you and your business from a potential disaster. Safety Quik prevents users from accidentally turning on the gas while the appliance is not connected to the supply line. The 360° movement of Swivel MAX protects the life of the connector and increases kitchen aisle space by allowing the appliance to be closer to the wall.

Features

Swivel

• Multi-plane Fitting: Aluminum body, plated steel fitting
• Movement: 360° rotational end fitting

The Safety Quik® Quick-Disconnect Valve:

• Quick-Disconnect: Brass body, carbon steel safety sleeve; Flat face, push-to-connect
• Protection Valve: quick-disconnect; Full port, brass gas ball valve
• Thermal Shut-off: Shuts off gas flow within a temperature range of 250ºF - 300ºF (121ºC - 149ºC)

Specifications:

THE DORMONT BLUE HOSE:

• Tubing: Annealed, 304 stainless steel (ASTM A240)
• Braiding: Multi-strand, 304 stainless steel wire
• Coating: Blue antimicrobial PVC, melts at 350ºF (177ºC) coating will not hold a flame
• End Fittings: Carbon steel; zinc and yellow dichromate coating
• Stress Guard: 360°rotation of end fittings at both ends before and after installation (patent pending)
