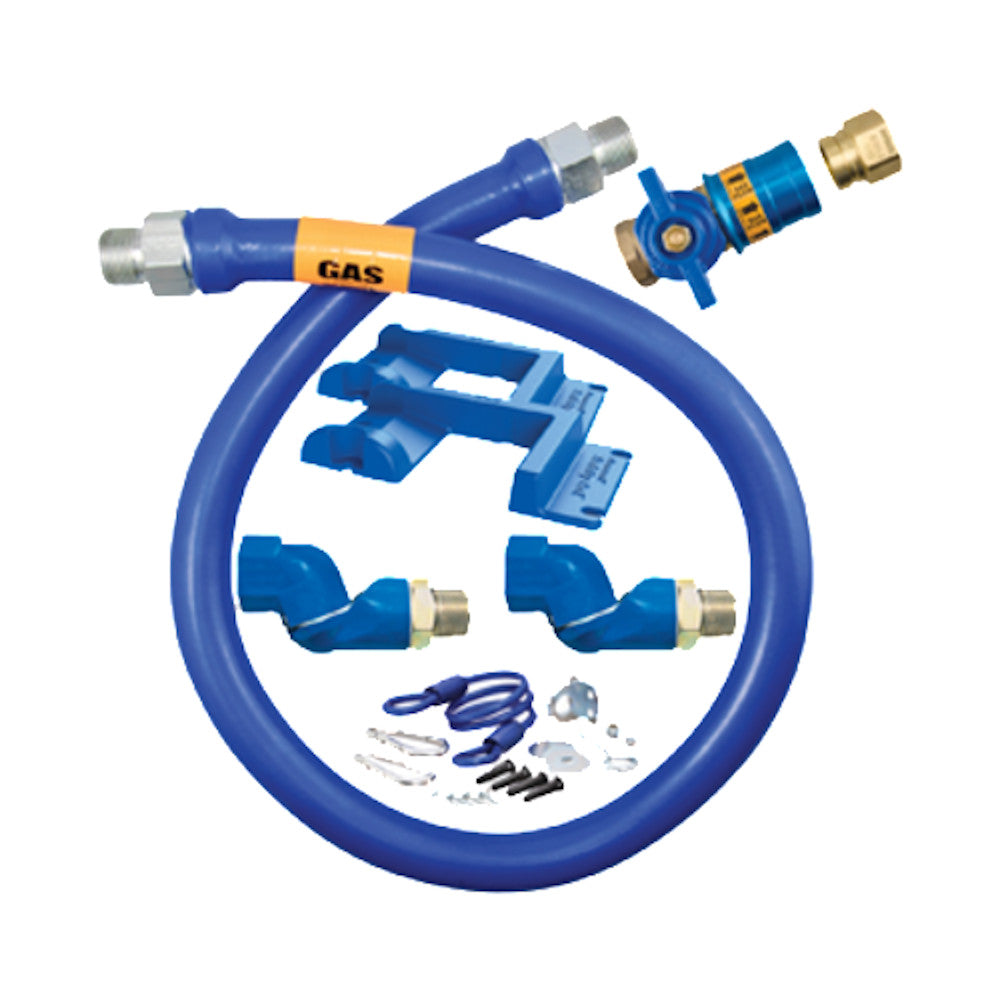

Dormont 16100KITCF2S72PS Blue Hose™ Movable 72" Gas Connector Kit

Double Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies combine flexible movement and one-handed Quick-Disconnect functionality with a unique safety shut-off. By preventing users from accidentally turning on the gas while the appliance is not connected to the supply line, the Double Swivel MAX/Safety Quik Assemblies protect your employees and your business. 360° movement of Swivel MAX at both ends of the assemblies allows appliances to safely be positioned closer to the wall – increasing your kitchen aisle space and prolonging the life of your connectors.

Swivel MAX®:

Multi-plane Fitting: Aluminum body, plated steel fitting

Movement: 360° rotational end fitting

Safety Quik® Quick-Disconnect Valve:

Quick-Disconnect: Brass body, aluminum collar

Protection Valve: Full port brass ball valve

Thermal Shut-off: Shuts off gas flow within a temperature range of 250ºF - 300ºF (121ºC - 149ºC)

THE DORMONT BLUE HOSE:

Tubing: Annealed, 304 stainless steel (ASTM A240)

Braiding: Multi-strand, 304 stainless steel wire

Coating: Blue antimicrobial PVC, melts at 350ºF (177ºC) coating will not hold a flame

End Fittings: Carbon steel; zinc and yellow dichromate coating

Stress Guard: 360°rotation of end fittings at both ends before and after installation (patent pending)
