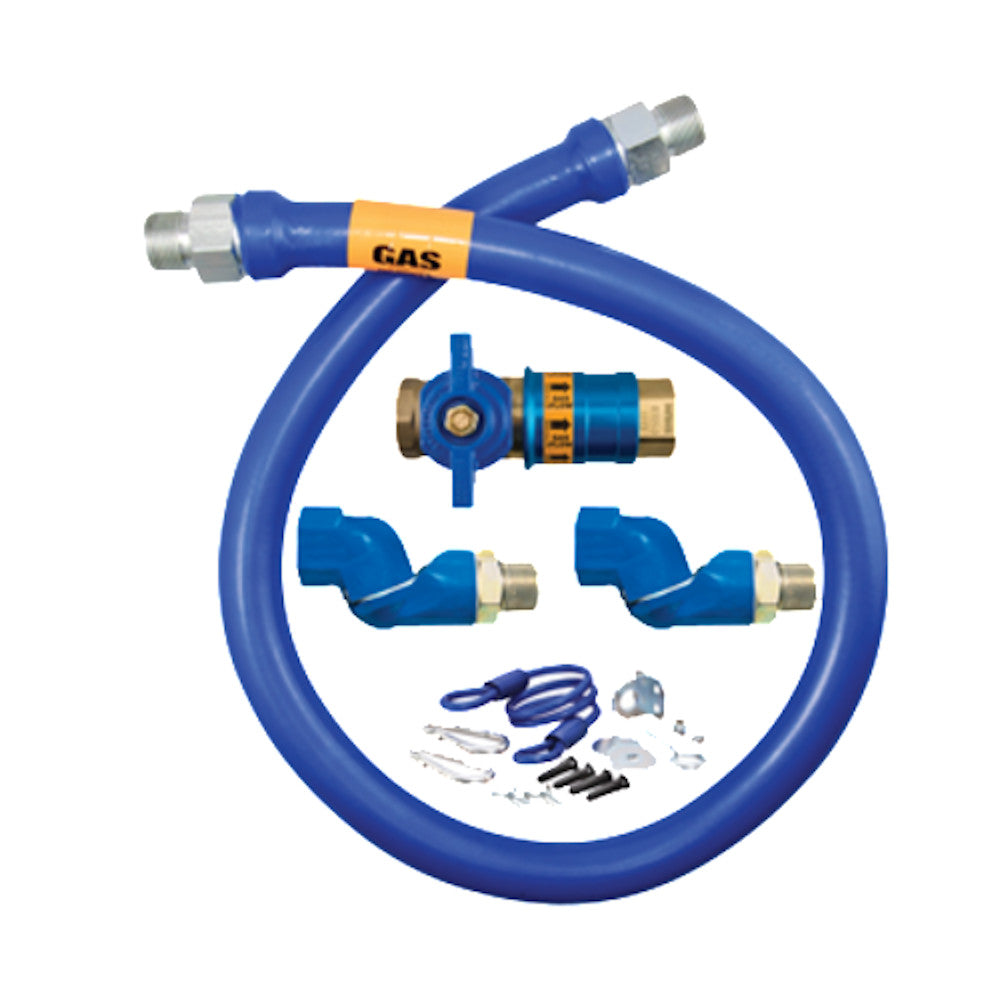

Dormont 16100KITCF2S36 Blue Hose™ Movable 36" Gas Connector Kit

Double Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies combine flexible movement and one-handed Quick-Disconnect functionality with a unique safety shut-off. By preventing users from accidentally turning on the gas while the appliance is not connected to the supply line, the Double Swivel MAX/Safety Quik Assemblies protect your employees and your business. 360° movement of Swivel MAX at both ends of the assemblies allows appliances to safely be positioned closer to the wall – increasing your kitchen aisle space and prolonging the life of your connectors.

SWIVELMAX:.

Multi-plane Fitting: Aluminum body, brass threaded end fittings

Movement: 360° multi-plane spherical rotation

Safety Quick® Quick-Disconnect Valve:

Quick-Disconnect: Brass body, carbon steel threaded end fittings, and aluminum collar

Protection Valve: Full port brass ball valve

Thermal Shut-off: Polymer insert in QD melts when internal temperatures exceed 350° F to shut off gas flow.

THE DORMONT BLUE HOSE:

Tubing: Annealed, 304 stainless steel (ASTM A240)

Braiding: Multi-strand, 304 stainless steel wire

Coating: Antimicrobial (patent #6,742,815) PVC, melts at 350°F, coating will not hold a flame; blue color indicates braided connector

End Fittings: Carbon steel; zinc and yellow dichromate coating

Stress Guard: 360°rotation of end fittings at both ends before and after installation (patent pending)
