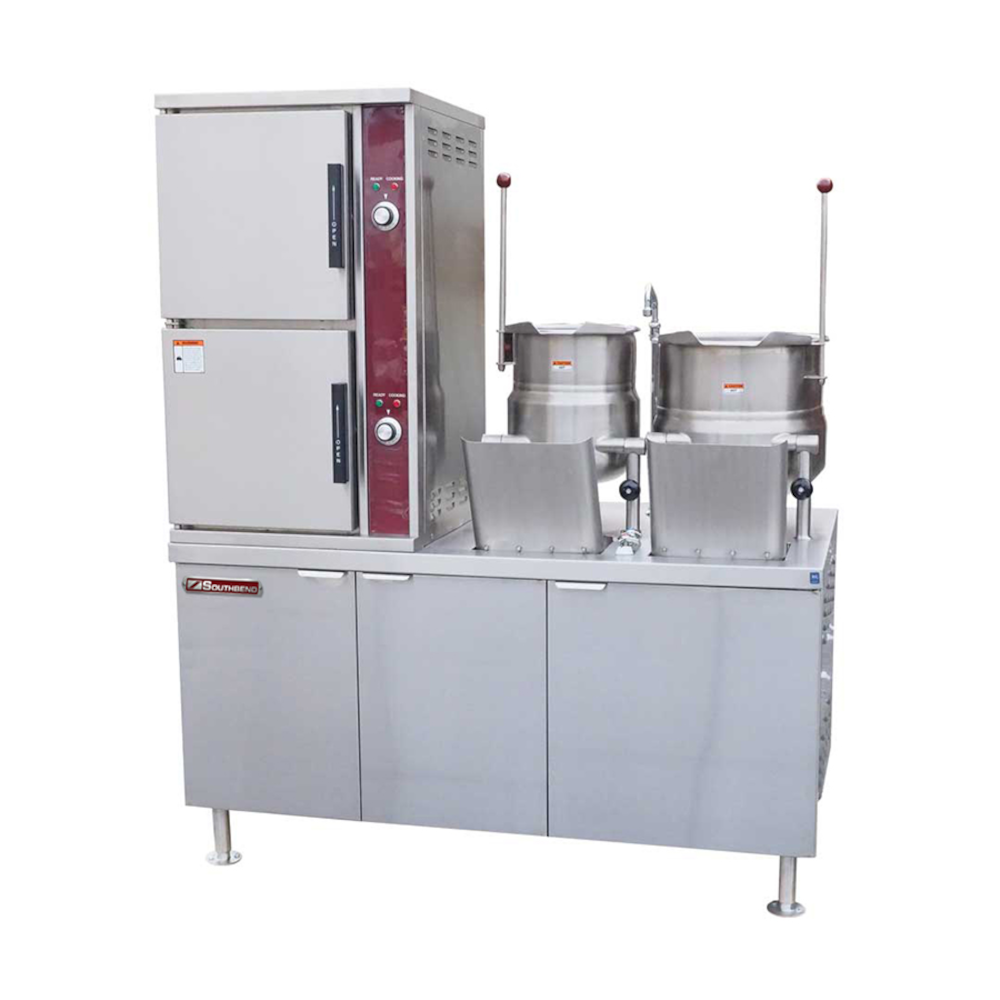

Crown DCX-2-6-10 Direct Steam Convection Steamer/Kettle

Crown DCX-2-6-10 Direct Steam Convection Steamer/Kettle features a direct non-toxic steam, incoming at a minimum of 15 psi (103 kPa) with a flow of 150 lbs (68 kg) per hour, alongside a pressure reducing valve that provides a manifold pressure of 7 psi (49 kPa) per hour, alongside having a cold water supply being 25-50 psi (170-345 kPa), which is required to control the drain temperature. This design allows for a reliable and efficient product.

Features and Benefits:

• A convection steamer that has doors with a removable inner liner of stainless steel, full perimeter gasket seal, outer shell of one piece, all welded, stainless steel, positive lock and seal mechanism and a stainless steel drip trough connected to the drain in order to collect condensate when doors are opened.
• A cooking chamber that’s constructed of all welded type 316 stainless steel, alongside being fully insulated and provided with removable stainless steel pan supports
• Steamer controls that are accessible through a fully removable side panel, with each compartment including a 60 minute mechanical timer with ready and cooking pilot lights.
• An alarm which signals the end of the cooking cycle.
• A cabinet base with controls, a full perimeter painted angle frame, reinforced kettle and boiler mountings, hinged doors with magnetic latch and 6” (152 mm) stainless steel legs fitted with 4 adjustable flanged feet for securing unit to the floor.

Specifications:

• Capacity: (1) 6 gallon and (1) 10 gallon kettle
• Pan Capacity: (3) 12" x 20" x 2-1/2" pans
• Voltage: 120v/50/60/1-ph, 4.0 amps
• Dimensions 62.13(h) x 60(w) x 33(d)li>
• Weight: 870 lbs
• Stainless Steel Type: 304 exterior, 316 interior
• Warranty: 1 year standard
