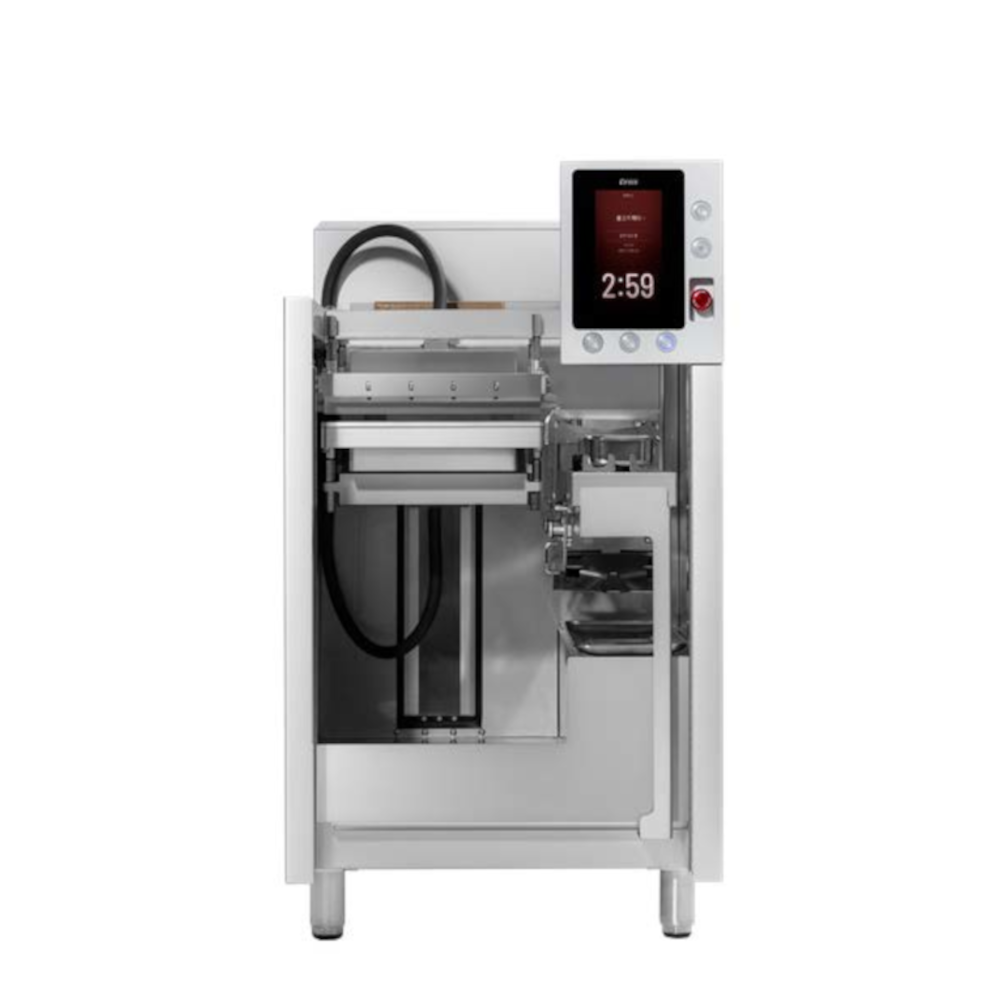

Aniai Alpha Grill 1 Platen Double Sided Autonomous Electric Grill

The Aniai Alpha Grill is an electric, semi-automated double-sided grilling system for high-volume commercial kitchens. It features a heated upper platen, lower griddle, integrated
robotic arm with spatula, and programmable touchscreen recipe control. With a one-touch
menu selection that integrates time, temperature, and plate gap, the Alpha Grill’s dual-sided cooking eliminates flipping for faster, more consistent results, delivering up to 150 products per hour.

With a compact footprint of only 24 inches, the single platen series was designed to fit onto a standard drawer refrigerator or equipment stand, allowing operators to maintain current kitchen workflows.

Features and Benefits:

• Heavy-duty stainless-steel front, top, and side panels - commercial-grade frame
• Weight – 330 lbs (150 kgs)
• Dual-sided cooking with one upper and bottom griddle plate (439 SUS) with temperature sensors for even heating. (Bottom cooking area: 15.3in x 10.6in)
• Touchscreen dashboard for recipe programming and operational control. Program
  and store custom recipes with:
  • high-precision thickness set points adjustable in 0.1 mm increments
  • temperature ranges from 86°F to 482°F (30°C to 250°C)
  • cook time intervals in seconds
  • melt time intervals in seconds
• Built-in drain and under-mounted, removable grease trap for easy waste removal.
  • Recommendation for cleaning: Hot water hose with max temperatures 158°F
    (70°C) with minimum 3.3ft (1m) spray reach for water-based cleaning
• Simple-to-install Teflon for top and bottom griddle for reduced residue and easy cleaning. One set (2 sheets) provided at install
• All removable parts and components are dishwasher safe: Top Oil Tray, Top Griddle Wiper, Spatula, Guide, Top Griddle Teflon Sheet Holder & Tray, Bottom Oil Bucket
• Additional components and parts are available for purchase.
• Integrated camera system for monitoring cooking performance
• Start, Stop, and Cleaning Mode LED indicators and Power On/Off buttons
• Real-time preheating, cooking, and cleaning status notifications (visual and audio)
• Aniai provides one year parts & labor warranty.

Automation

• Integrated robotic arm with built-in spatula (7” Wide) to automate cooking operations
• Patty Tray to hold offloaded cooked food
• Bottom griddle scraping system between operations to improve hygiene and reduce manual cleaning
• Fixed scrubber for automatic spatula cleaning between cooking cycles
• Top Griddle Wiper for auto-scraping and cleaning between cycles with attached oil tray for residue


Safety Features

• Light curtain safety sensors stop operations when hands or objects enter restricted zones during active cooking

• Emergency stop button for immediate system shutdown
• Dedicated cleaning mode that disables automated motion while cleaning.
• Safety restraints for secured mounting to refrigerated/equipment base

Electrical, Internet Connection

• Main Power Cable
  • 8 AWG, 4C, NEMA 15-50P, cable and plug provided by Aniai
• Distribution Panel
  • The circuit breaker must provide integrated ground fault and overcurrent protection (including overload, instantaneous, and short circuit
    protection)
  • Rated current of the breaker to be set approximately 25% above the maximum operating current specified in the electrical specifications to
    provide an adequate safety margin
• Ground Connection
  • Every appliance must be properly grounded in accordance with the local electrical codes and regulations; where not applicable, grounding
    must comply with the latest National Electrical Code (NEC)
• Internet
  • Ethernet cable required (10-25ft) for connectivity, support monitoring and firmware updates: CAT.5E or higher (no PoE).
  • Connection: RJ45 connector
  • Speed > 10 Mbps
  • Latency < 100ms

Cooking on Alpha Grill

• Multiple operating modes accommodate different workflows, enabling greater menu flexibility:
• a) Automation with robotic spatula
• b) Automation without robotic spatula
• c) Manual flat-top operation with no automation.

• A variety of menu items, not limited to - fresh or frozen hamburger patties (meat or plant-based), proteins such as steak, pork, and salmon, and breakfast or griddle-style items including pancakes, eggs, and grilled cheese

Specifications

• Model: Alpha Grill 1 Platen
• Cleaning Requirements: Hot water hose with max temperatures 176°F (80°C) with minimum approx. 3.3ft (1 m) spray reach and nearby drainage recommended for water-based cleaning
• Clearance Requirements for Efficient Maintenance: 2.3 ft (700mm) on each side of the Grill. When side space not available, product front space must have at least 5ft (1500mm). This will minimize operational disruptions. Note: spaces can be occupied with movable kitchen equipment (e.g. trays, refrigerators) if necessary
• Dimensions (Fully Assembled): 32.2"D x 45.3"H x 24"W

• Electrical Input Specifications Recommended
  • Triple Phase
    • WYE Cable Type: 10SQ, 4C (R/S/T/N) + 10SQ, 1C (Earth) = 5 Lines
      • 220/380V, 60Hz
        • R-N: 1.0 kW
        • S-N: 3.2kW
        • T-N: 4.8 kW
        • R: 4.5A
        • S: 14.5A
        • T: 21.8A
        • N: 15.0A
        • Total Power: 9.0 kW
        • Minimum Required Breaker: 30A
    • DELTA Cable Type: 8 AWG, 4C (X/Y/Z/Earth)
      • 208V, 60Hz
        • X-Y: 1.0 kW
        • Y-Z: 3.2 kW
        • Z-X: 4.8 kW
        • X: 25.8A
        • Y: 18.3A
        • Z: 33.5A
        • Total Power: 9.0 kW
        • Minimum Required Breaker: 50A

      • 240V, 60Hz
        • X-Y: 1.0 kW
        • Y-Z: 3.2 kW
        • Z-X: 4.8 kW
        • X: 22.4A
        • Y: 15.8A
        • Z: 29.1A
        • Total Power: 9.0 kW
        • Minimum Required Breaker: 40A
  • Single Phase
    • WYE Cable Type: 10SQ, 2C (R/N) + 6SQ, 1C (Earth) = 3 Lines
      • 220/380V, 60Hz
        • R-N: 9.0 kW
        • R: 40.9A
        • N: 40.9A
        • Total Power: 9.0 kW
        • Minimum Required Breaker: 60A
      • 230/400V, 60Hz
        • R-N: 9.0 kW
        • R: 39.1A
        • N: 39.1A
        • Total Power: 9.0 kW
        • Minimum Required Breaker: 50A
    • DELTA Cable Type: 6 AWG, 3C (X/Y/Earth)
      • 208V, 60Hz
        • X-Y: 9.0 kW
        • X: 43.3A
        • Y: 43.3A

        • Total Power: 9.0 kW
        • Minimum Required Breaker: 60A

      • 240V, 60Hz
        • X-Y: 9.0 kW
        • X: 37.5A
        • Y: 37.5A

        • Total Power: 9.0 kW
        • Minimum Required Breaker: 50A
• Accessories & Additional Parts: Removable components and accessories are available for purchase. Pricing available upon request (e.g., warming trays, spatula, wipers, oil buckets, Teflon sheets, cleaning kits)
• Installation is included
