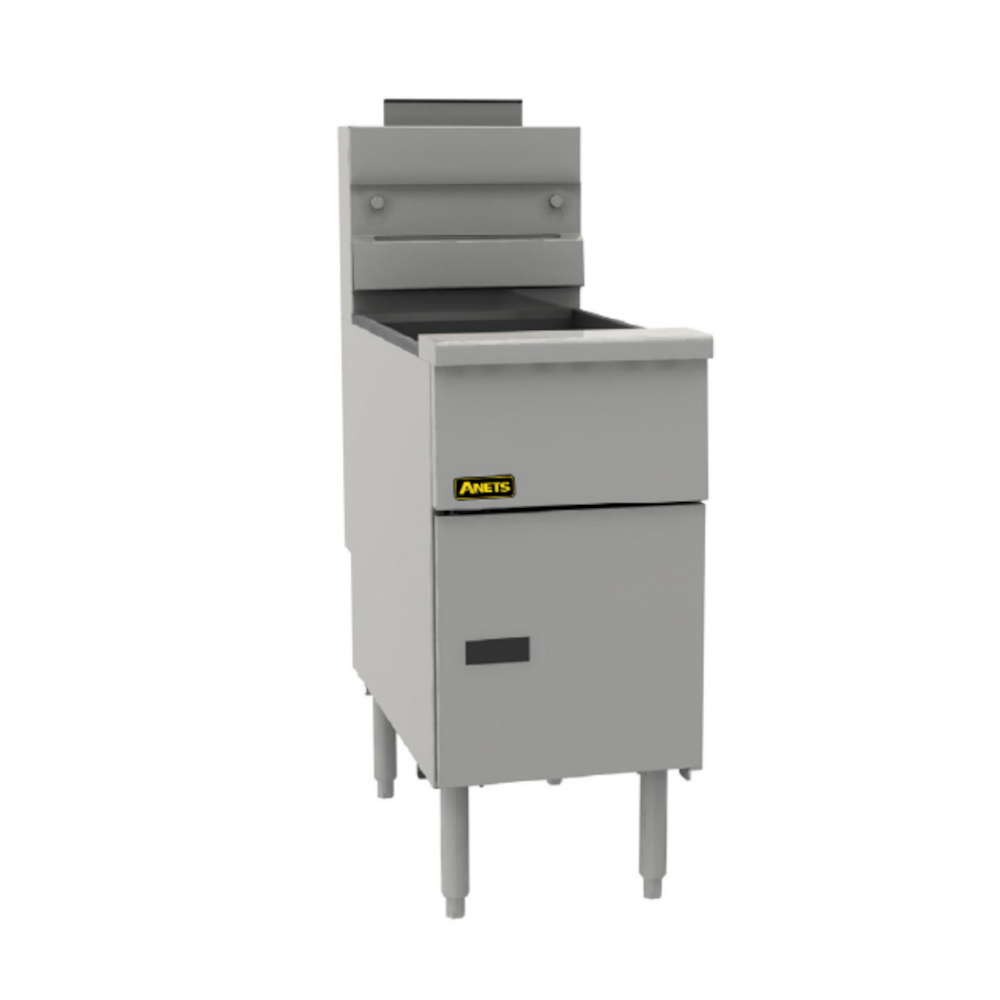

Anets 40AV Tube Fired Floor Gas Fryer 35 lb Oil Capacity

The Anets 40AV Valve Fryer is a reliable, high-performance gas fryer engineered for busy commercial kitchens that demand consistent results and durability. Designed with a 35–40 lb. oil capacity, this floor-model fryer delivers powerful cooking performance while maintaining efficiency and ease of use.

Built with a rugged stainless steel tank, front, sides, and door, the 40AV is made to withstand the rigors of daily foodservice operations. Its tube-fired design features three high-efficiency burners and heat exchange tubes that ensure fast heat recovery and even oil temperatures—ideal for high-volume frying applications.

Features and Benefits:

• Tank - stainless steel
• Cabinet – stainless steel front & door - galvanized sides & back
• Millivolt Thermostat
• High temperature safety limit switch
• Built-in integrated flue deflector
• 1.25” (32mm) full port drain valve
• Two twin fry baskets (regular mesh)
• Tube rack
• Drain extension
• Clean out rod
• Removable basket hanger
• 9” (152mm) adjustable legs
• 14” x 14” stainless tank
• 2.0” to 3.5” (5cm to 8cm) cook depth
• 35 to 40 lbs oil capacity (15.9 to 18.1 liters)
• Three tube/burner design with 4” burner and 4” tube
• Welded tank with extra smooth peen finish ensures easy cleaning.
• Long-lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes
• Standing pilot light design provides a ready flame when heat is required.
• Stainless steel front, door, sides and splash back
• Atmospheric burner/baffle design.
• Increases cooking production
• Lowers flue temperature
• Improves working environment
• Generates more production per BTU
• Thermostat maintains selected temperature automatically between 200°F and 400°F (93°C and 190°C).
• Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, and automatic valve.
• Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
• High Temperature limit switch safely shuts off all gas flow if the oil temperature exceeds the upper limit.
• Battery Spark Ignitor makes lighting pilot quick and easy. (CE and Australia only)
• Front 1.25” (32mm) NPT drain for quick draining.

Specifications

• Model: 40AV
• Shipping Dimensions: 36" H x 19" W x 46" D
• Frying Area: 14" x 14"
• Cook Depth: 3.0 - 4.0"
• Oil Capacity: 35 - 40 lbs
• Gas Input Rate / Hr: 70,000 BTU
• Burner Pressure Natural Gas: 4" W.C.
• Shipping Weight: 155 lbs
